IKO CF20BUUR

Standard Metric Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Sealed, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

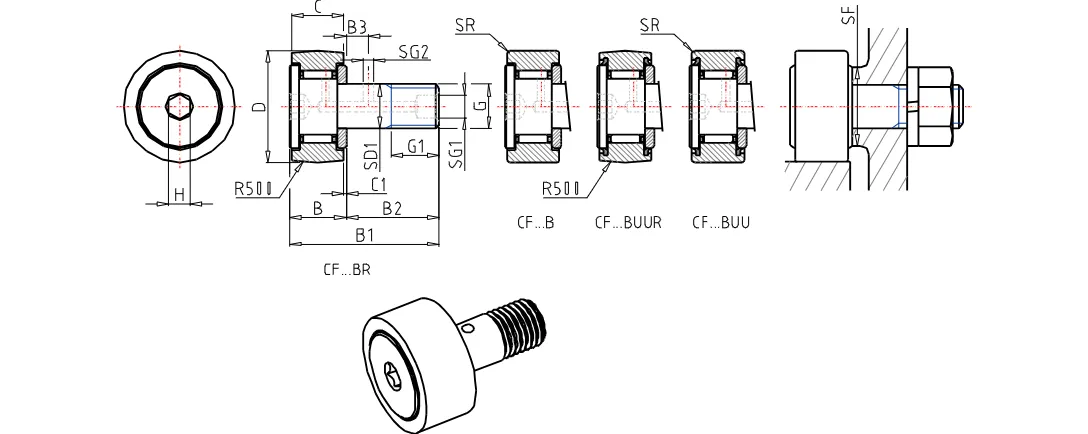

Detailed data of

CF20BUUR

Order Number CF20BUUR
Stud Diameter 20 mm
Inscribed circle diameter 20 mm
Outer Diameter 52 mm
Width 24 mm
Stud Diameter 20 mm
Thread M20x1.5 Length
21.0 mm
Maximum width 25.6 mm
Max.Total length 66.1 mm
Length 40.5 mm
Dimension 9 mm
Dimension 0.8 mm
Diameter 8 mm
Diameter 4 mm
Dimension 8.0 mm
rs min. - mm
Min.Dimension related to the installation 34.0 mm
Maximum tightening torque 119.00 Nm
Basic dynamic load rating 20700 N
Basic static load rating 34600 N
Max.Static allowable load 34600 N
Mass 460.0 g
