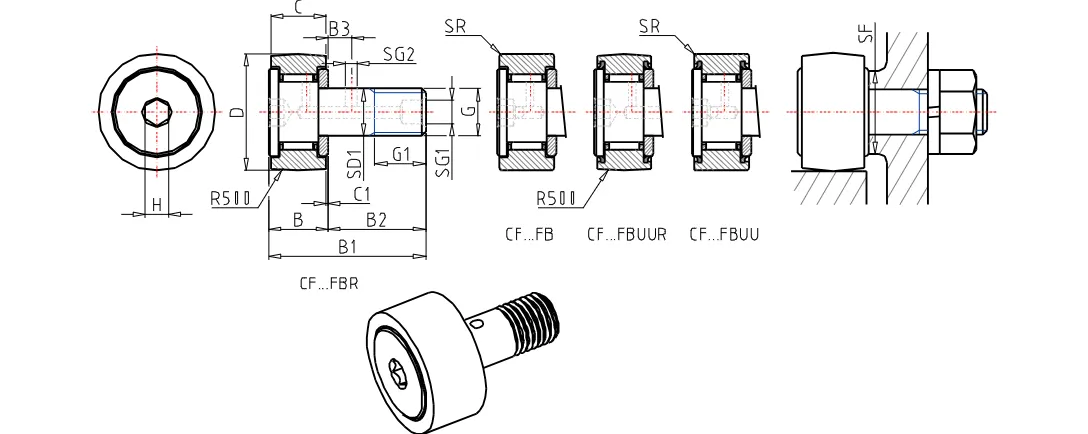

IKO CF20FB
Standard Metric Cam Follower, Caged, Stainless Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CF20FB
Stud Diameter
20
mm
Outer Diameter
52
mm
Width
24
mm
Stud Diameter
20
mm
Thread
M20x1.5
Length
21.0
mm
Maximum width
25.6
mm
Max.Total length
66.1
mm
Length
40.5
mm
Dimension
9
mm
Dimension
0.8
mm
Diameter
8
mm
Diameter
4
mm
Dimension
8.0
mm
rs min.
1
mm
Min.Dimension related to the installation
34.0
mm
Maximum tightening torque
119.00
Nm
Basic dynamic load rating
16500
N
Basic static load rating
27700
N
Max.Static allowable load
27700
N
Mass
460.0
g
