IKO CF24VR

Standard Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

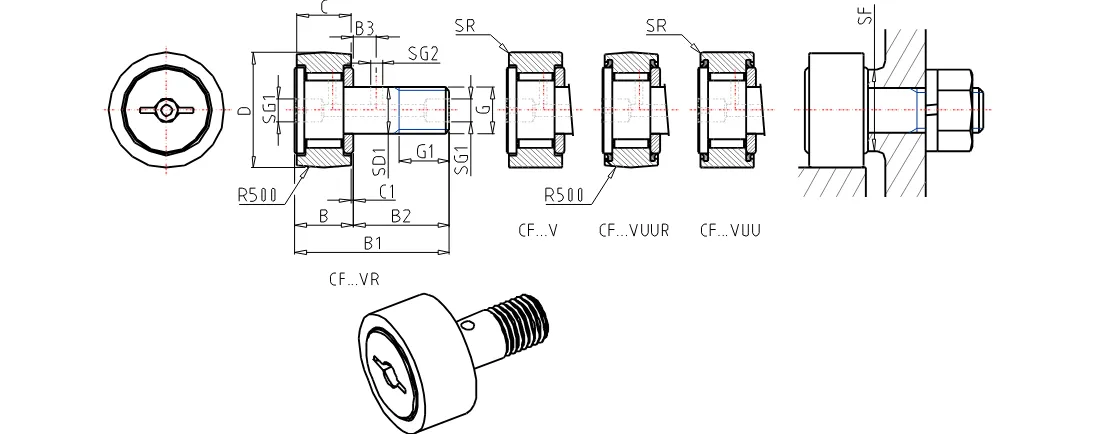

Detailed data of

CF24VR

Order Number CF24VR
Stud Diameter 24 mm
Outer Diameter 62 mm
Width 29 mm
Stud Diameter 24 mm
Thread M24x1.5 Length
25 mm
Maximum width 30.6 mm
Max.Total length 80.1 mm
Length 49.5 mm
Dimension 11 mm
Dimension 0.8 mm
Diameter 8 mm
Diameter 4 mm
rs min. 1.0 mm
Min.Dimension related to the installation 40 mm
Maximum tightening torque 215.0 Nm
Basic dynamic load rating 46600 N
Basic static load rating 92000 N
Max.Static allowable load 52000 N
Mass 820 g
