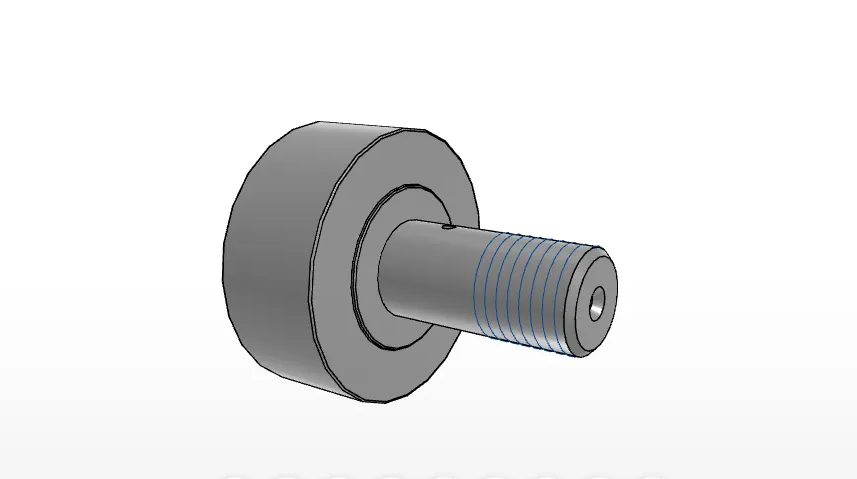

IKO CF301B
Standard Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CF30-1B
Stud Diameter
30
mm
Inscribed circle diameter
30
mm
Outer Diameter
85
mm
Width
35
mm
Stud Diameter
30
mm
Thread
M30x1.5
Length
32.0
mm
Maximum width
37.0
mm
Max.Total length
100.0
mm
Length
63.0
mm

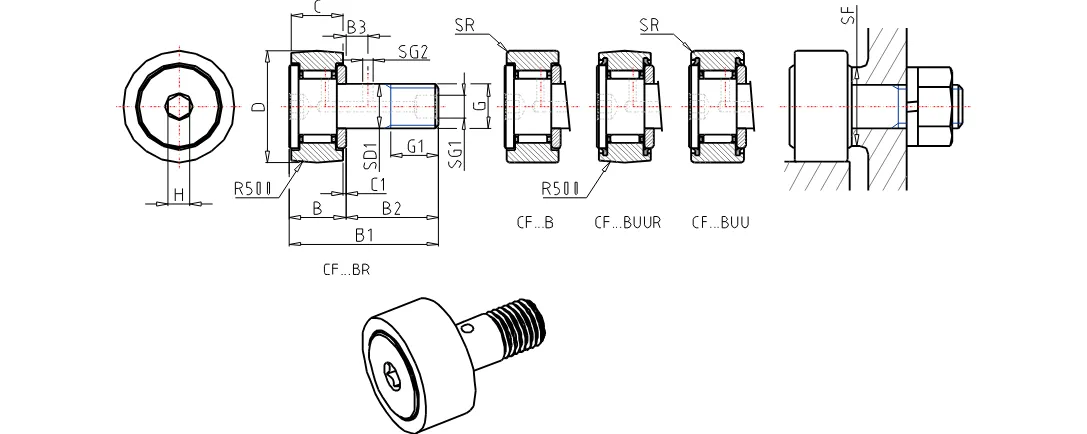

Dimension
15
mm
Dimension
1.0
mm
Diameter
8
mm
Diameter
4
mm
Dimension
17.0
mm
rs min.
1
mm
Min.Dimension related to the installation
49.0
mm
Maximum tightening torque
438.00
Nm
Basic dynamic load rating
45400
N
Basic static load rating
85100
N
Max.Static allowable load
85100
N
Mass
2030.0
g
