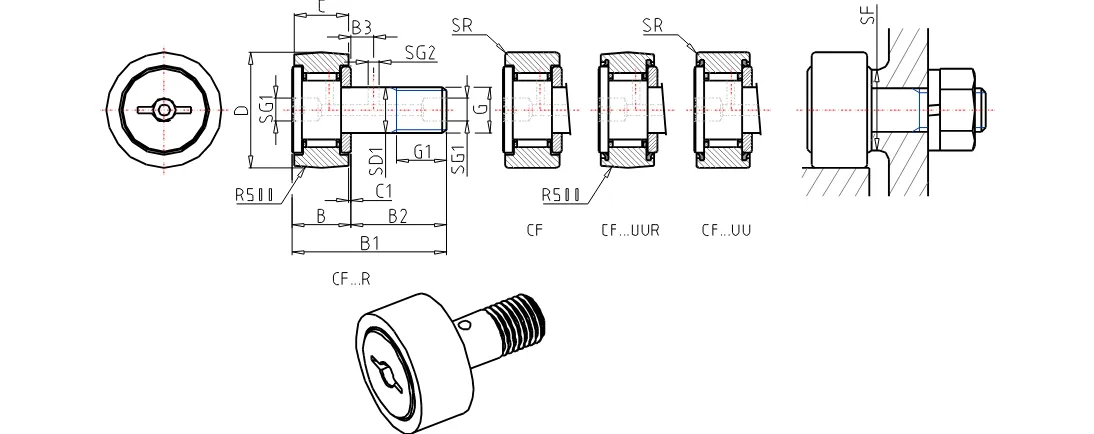

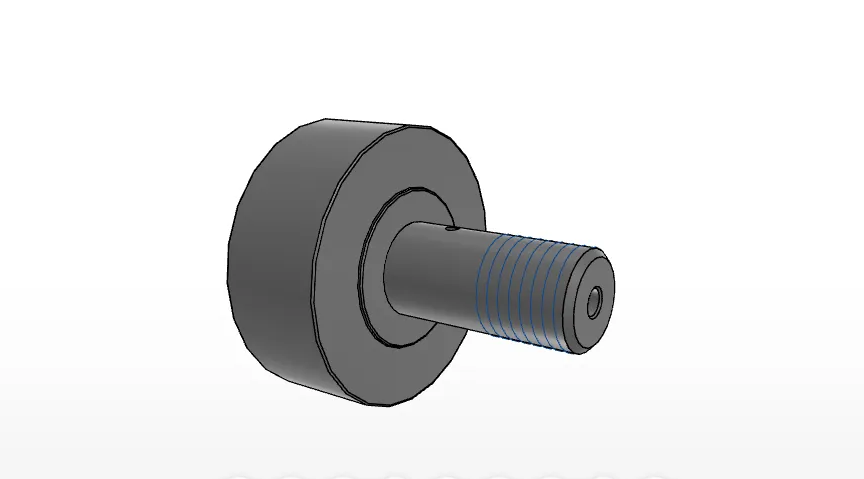

IKO CF302
Standard Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CF30-2
Stud Diameter
30
mm
Outer Diameter
90
mm
Width
35
mm
Stud Diameter
30
mm
Thread
M30x1.5
Length
32
mm
Maximum width
37
mm
Max.Total length
100
mm
Length
63
mm
Dimension
15
mm
Dimension
1.0
mm
Diameter
8.0
mm
Diameter
4
mm
rs min.
1
mm
Min.Dimension related to the installation
49.0
mm
Maximum tightening torque
438.00
Nm
Basic dynamic load rating
45400
N
Basic static load rating
85100
N
Max.Static allowable load
85100
N
Mass
2220.0
g
