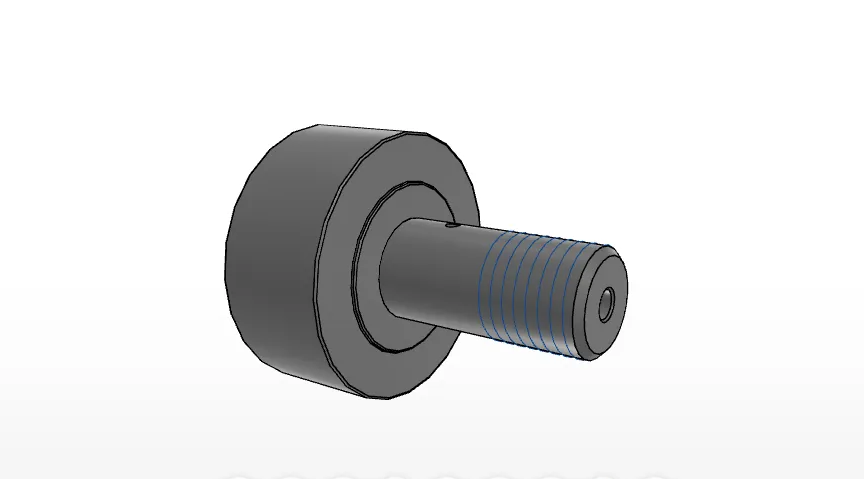

IKO CF30V

Standard Metric Cam Follower, Full Complement, High Carbon Steel, Cylindrical Outer Ring, Shielded, Screw Driver Slot,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

Detailed data of

CF30V

Order Number CF30V
Stud Diameter 30 mm
Outer Diameter 80 mm
Width 35 mm
Stud Diameter 30 mm
Thread M30x1.5 Length
32 mm
Maximum width 37.0 mm
Max.Total length 100.0 mm
Length 63.0 mm
Dimension 15 mm
Dimension 1.0 mm
Diameter 8 mm
Diameter 4 mm
rs min. 1.0 mm
Min.Dimension related to the installation 49 mm
Maximum tightening torque 438.0 Nm
Basic dynamic load rating 67700 N
Basic static load rating 144000 N
Max.Static allowable load 85900 N
Mass 1870 g
