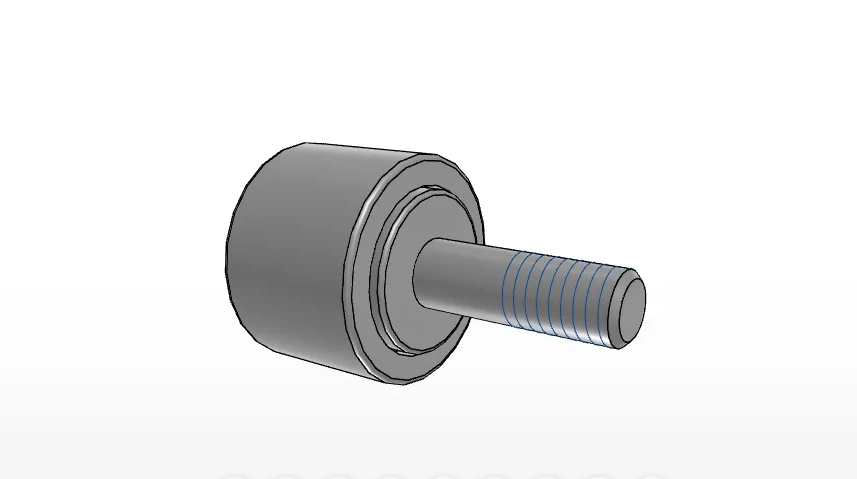

IKO CF3B

Standard Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

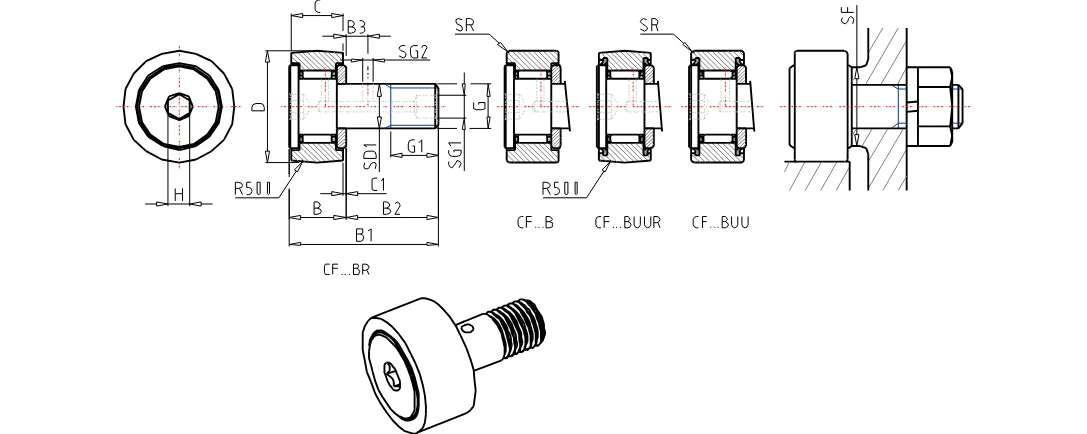

Detailed data of

CF3B

Order Number CF3B
Stud Diameter 3 mm
Inscribed circle diameter 3 mm
Outer Diameter 10 mm
Width 7 mm
Stud Diameter 3 mm
Thread M3x0.5 Length
5.0 mm
Maximum width 8.0 mm
Max.Total length 17.0 mm
Length 9.0 mm
Dimension - mm
Dimension 0.5 mm
Diameter - mm
Diameter - mm
Dimension 2.0 mm
rs min. 0.2 mm
Min.Dimension related to the installation 6.8 mm
Maximum tightening torque 0.34 Nm
Basic dynamic load rating 1500 N
Basic static load rating 1020 N
Max.Static allowable load 384 N
Mass 4.3 g
