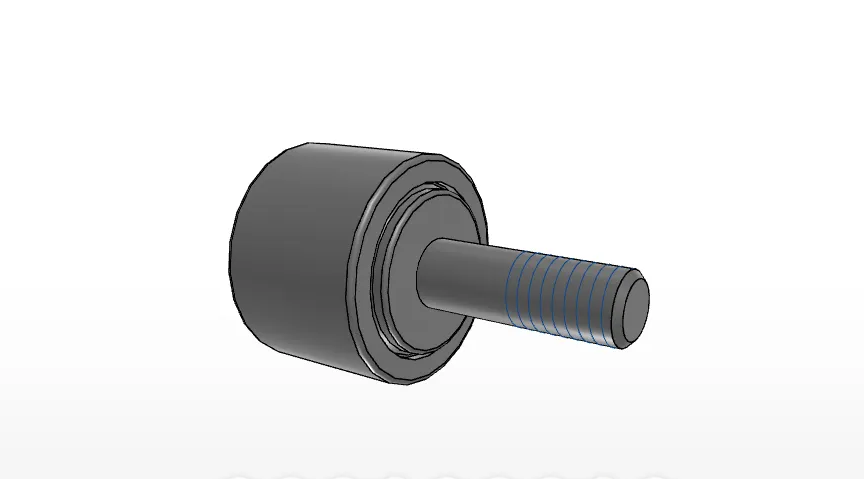

IKO CF3UU
Standard Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Sealed, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

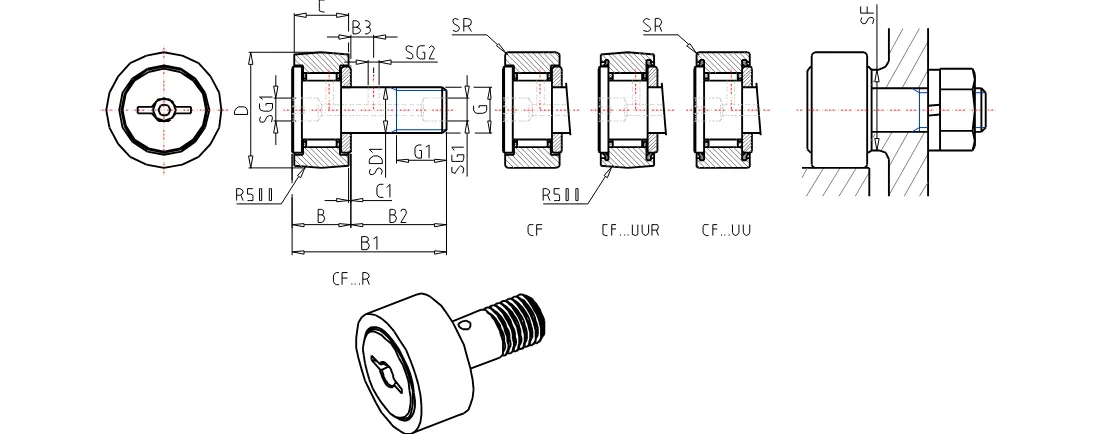

Order Number
CF3UU
Stud Diameter
3
mm
Outer Diameter
10
mm
Width
7
mm
Stud Diameter
3
mm
Thread
M3x0.5
Length
5
mm
Maximum width
8
mm
Max.Total length
17
mm
Length
9
mm
Dimension
-
mm
Dimension
0.5
mm
Diameter
0.0
mm
Diameter
-
mm
rs min.
0.2
mm
Min.Dimension related to the installation
6.8
mm
Maximum tightening torque
0.34
Nm
Basic dynamic load rating
1500
N
Basic static load rating
1020
N
Max.Static allowable load
384
N
Mass
4.3
g
