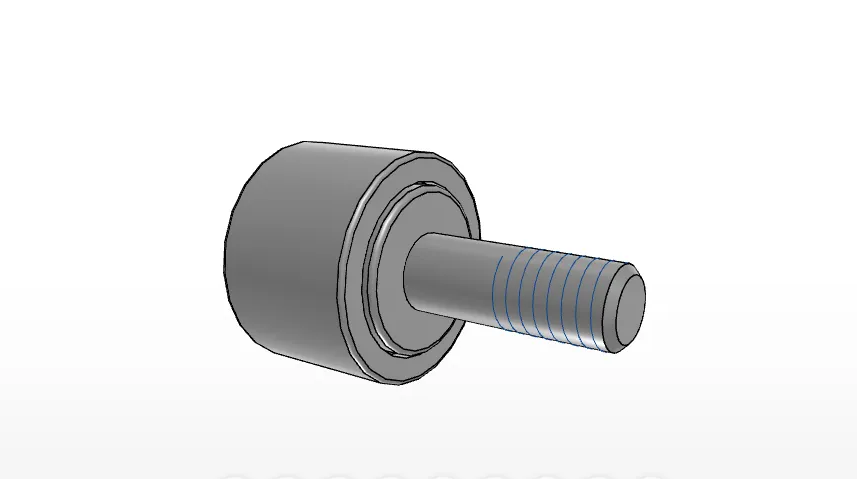

IKO CF4B

Standard Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

Detailed data of

CF4B

Order Number CF4B
Stud Diameter 4 mm
Inscribed circle diameter 4 mm
Outer Diameter 12 mm
Width 8 mm
Stud Diameter 4 mm
Thread M4x0.7 Length
6.0 mm
Maximum width 9.0 mm
Max.Total length 20.0 mm
Length 11.0 mm
Dimension - mm
Dimension 0.5 mm
Diameter - mm
Diameter - mm
Dimension 2.5 mm
rs min. 0.3 mm
Min.Dimension related to the installation 8.3 mm
Maximum tightening torque 0.78 Nm
Basic dynamic load rating 2070 N
Basic static load rating 1590 N
Max.Static allowable load 834 N
Mass 7.4 g
