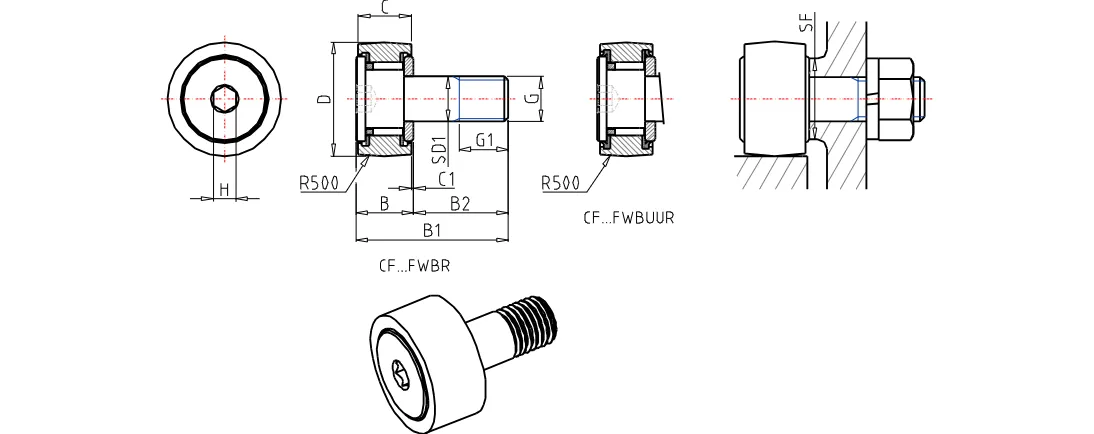

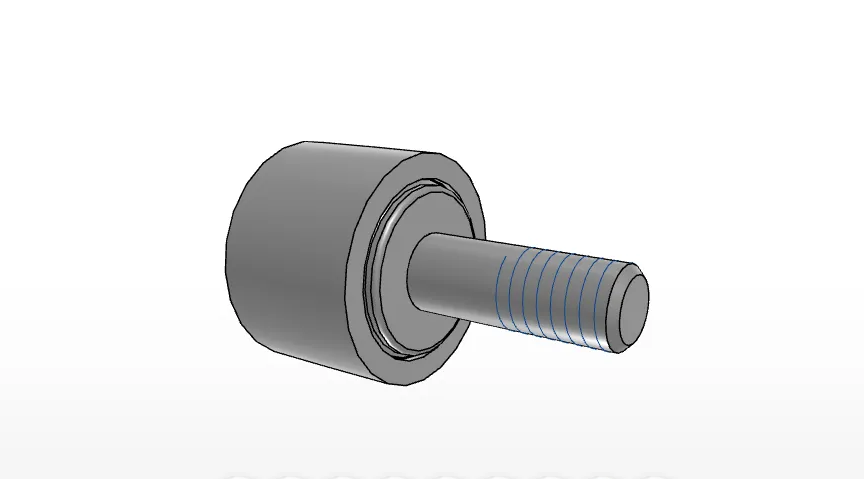

IKO CF4FWBUUR
Thrust Disk Metric Cam Follower, Caged, Stainless Steel, Crowned Outer Ring, Sealed, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
Order Number
CF4FWBUUR
Stud Diameter
4
mm
Outer Diameter
12
mm
Width
8
mm
Stud Diameter
4
mm
Thread
M4x0.7
Length
6.0
mm
Maximum width
9
mm
Max.Total length
20
mm
Length
11
mm
Dimension
0.5
mm
Dimension
2.5
mm
Min.Dimension related to the installation
8.3
mm
Maximum tightening torque
0.78
Nm
Basic dynamic load rating
1650
N
Basic static load rating
1270
N
Max.Static allowable load
834
N
Mass
7.4
g
