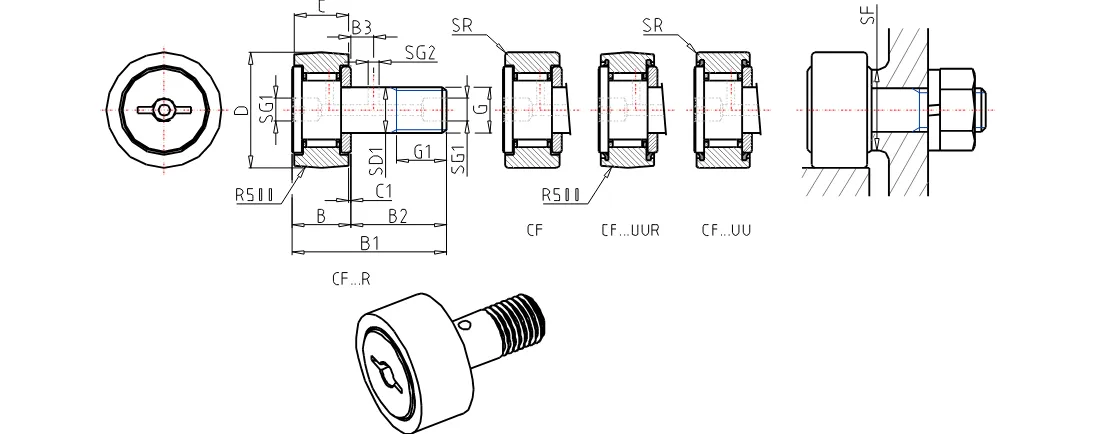

IKO CF4UU
Standard Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Sealed, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CF4UU
Stud Diameter
4
mm
Outer Diameter
12
mm
Width
8
mm
Stud Diameter
4
mm
Thread
M4x0.7
Length
6
mm
Maximum width
9
mm
Max.Total length
20
mm
Length
11
mm
Dimension
-
mm
Dimension
0.5
mm
Diameter
0.0
mm
Diameter
-
mm
rs min.
0.3
mm
Min.Dimension related to the installation
8.3
mm
Maximum tightening torque
0.78
Nm
Basic dynamic load rating
2070
N
Basic static load rating
1590
N
Max.Static allowable load
834
N
Mass
7.4
g
