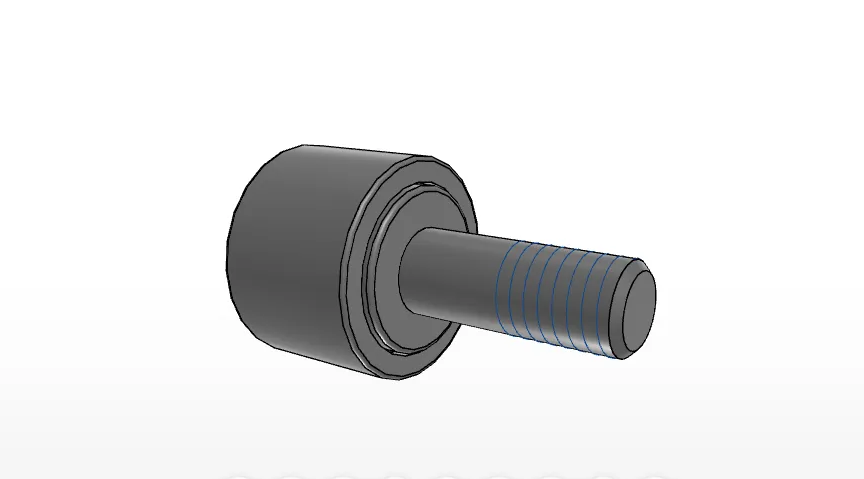

IKO CF5
Standard Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CF5
Stud Diameter
5
mm
Outer Diameter
13
mm
Width
9
mm
Stud Diameter
5
mm
Thread
M5x0.8
Length
7
mm
Maximum width
10
mm
Max.Total length
23
mm
Length
13
mm
Dimension
-
mm
Dimension
0.5
mm
Diameter
3.1
mm
Diameter
-
mm
rs min.
0.3
mm
Min.Dimension related to the installation
9.3
mm
Maximum tightening torque
1.60
Nm
Basic dynamic load rating
2520
N
Basic static load rating
2140
N
Max.Static allowable load
1260
N
Mass
10.3
g
