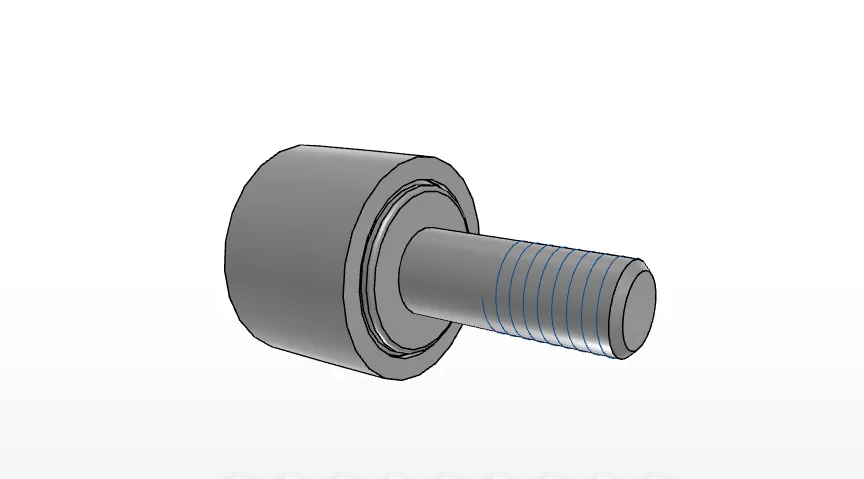

IKO CF5FWBUUR
Thrust Disk Metric Cam Follower, Caged, Stainless Steel, Crowned Outer Ring, Sealed, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
Order Number
CF5FWBUUR
Stud Diameter
5
mm
Outer Diameter
13
mm
Width
9
mm
Stud Diameter
5
mm
Thread
M5x0.8
Length
7.5
mm
Maximum width
10
mm
Max.Total length
23
mm
Length
13
mm
Dimension
0.5
mm
Dimension
3.0
mm
Min.Dimension related to the installation
9.3
mm
Maximum tightening torque
1.60
Nm
Basic dynamic load rating
1930
N
Basic static load rating
1730
N
Max.Static allowable load
1260
N
Mass
10.3
g
