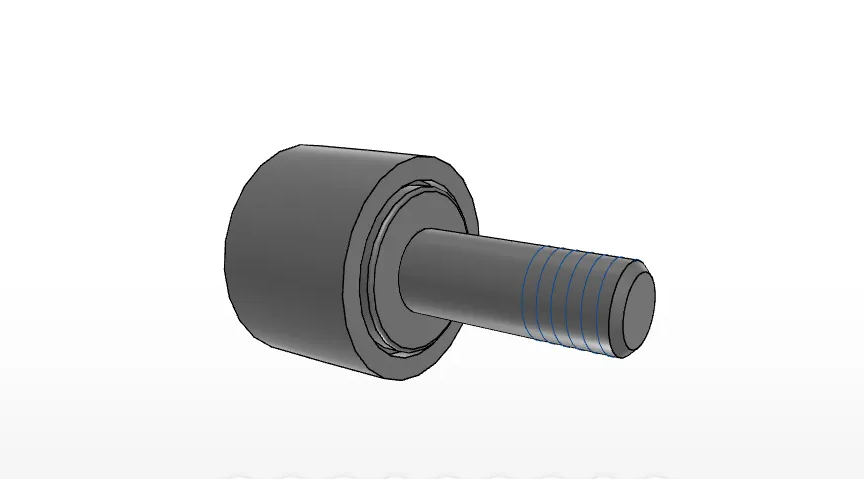

IKO CF6VR
Standard Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CF6VR
Stud Diameter
6
mm
Outer Diameter
16
mm
Width
11
mm
Stud Diameter
6
mm
Thread
M6x1
Length
8
mm
Maximum width
12.2
mm
Max.Total length
28.2
mm
Length
16.0
mm
Dimension
-
mm
Dimension
0.6
mm
Diameter
4
mm
Diameter
-
mm
rs min.
0.3
mm
Min.Dimension related to the installation
11
mm
Maximum tightening torque
2.7
Nm
Basic dynamic load rating
6980
N
Basic static load rating
8500
N
Max.Static allowable load
1950
N
Mass
19
g
