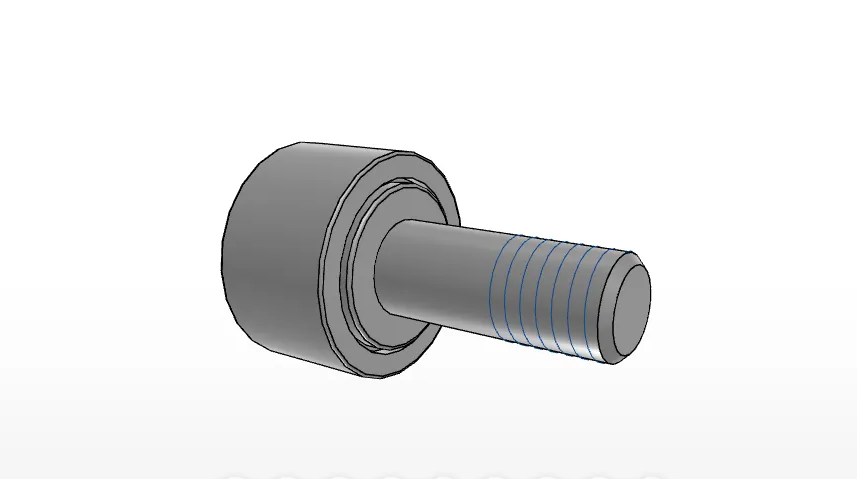

IKO CF8B

Standard Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

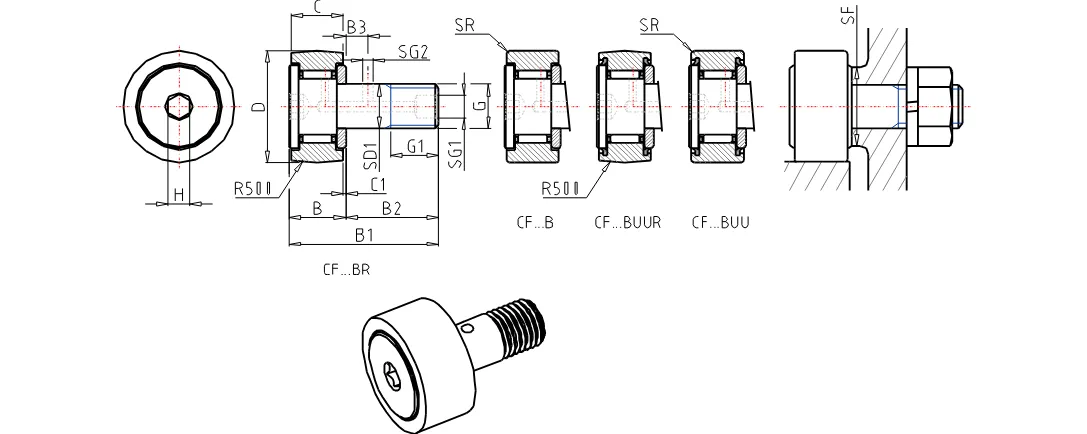

Detailed data of

CF8B

Order Number CF8B
Stud Diameter 8 mm
Inscribed circle diameter 8 mm
Outer Diameter 19 mm
Width 11 mm
Stud Diameter 8 mm
Thread M8x1.25 Length
10.0 mm
Maximum width 12.2 mm
Max.Total length 32.2 mm
Length 20.0 mm
Dimension - mm
Dimension 0.6 mm
Diameter - mm
Diameter - mm
Dimension 4.0 mm
rs min. 0.3 mm
Min.Dimension related to the installation 13.0 mm
Maximum tightening torque 6.50 Nm
Basic dynamic load rating 4250 N
Basic static load rating 4740 N
Max.Static allowable load 4620 N
Mass 28.5 g
