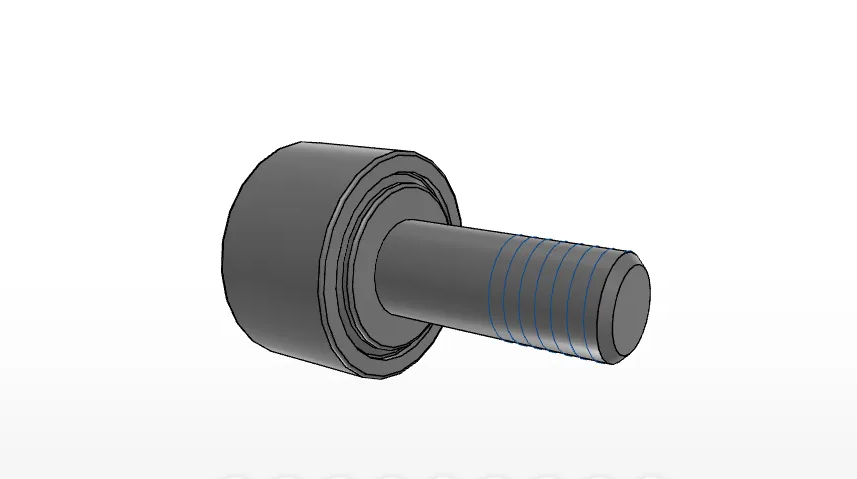

IKO CF8VBUU
Cam Followers
Standard Metric Cam Follower, Full Complement, High Carbon Steel, Cylindrical Outer Ring, Sealed, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com
REQUEST A QUOTE

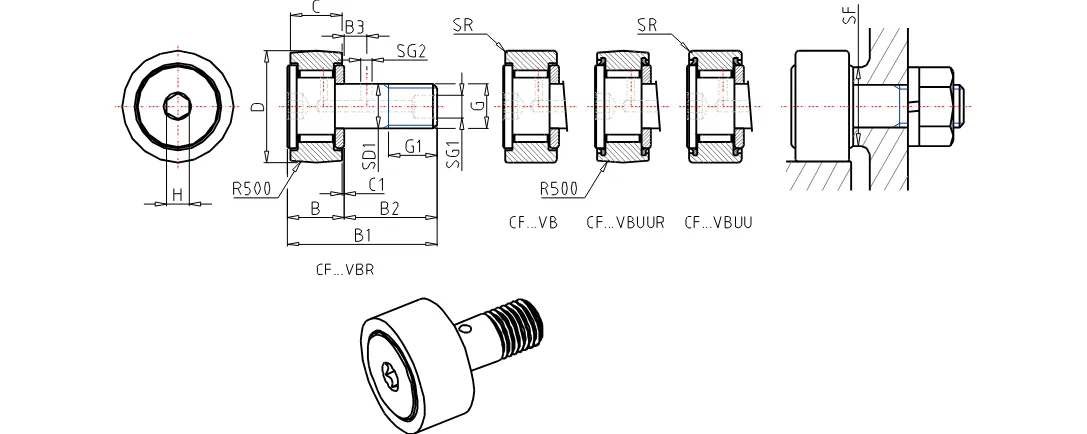

Detailed data of Product
similar to product
Detailed data of
CF8VBUU
Cam Followers
Order Number
CF8VBUU
Stud Diameter
8
mm
Outer Diameter
19
mm
Width
11
mm
Stud Diameter
8
mm
Thread
M8x1.25
Length
10
mm
Length
4
mm
Length
1.0
mm
Maximum width
12.2
mm
Max.Total length
32
mm
Length
20
mm
Dimension
-
mm
Dimension
0.6
mm
Diameter
-
mm
Diameter
-
mm
Dimension
4
mm
rs min.
0.3
mm
Min.Dimension related to the installation
13
mm
Maximum tightening torque
6.5
Nm
Basic dynamic load rating
8170
N
Basic static load rating
11200
N
Max.Static allowable load
4620
N
Mass
29
g
