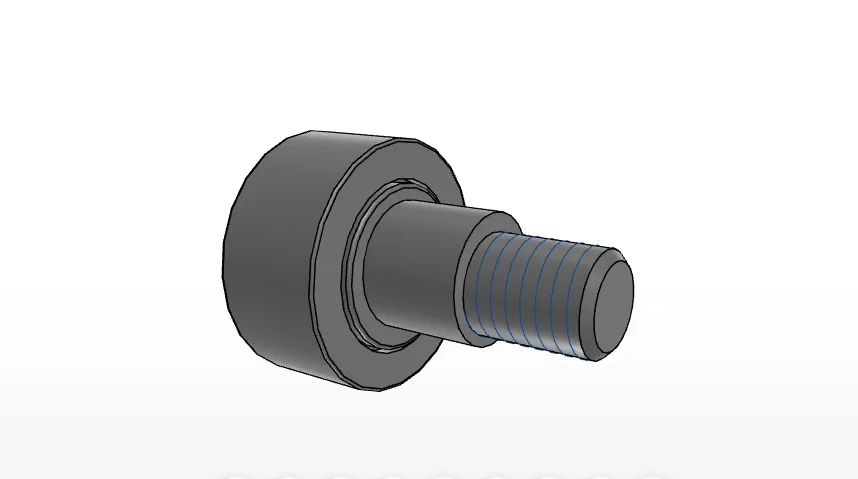

IKO CFE101B

Eccentric Collar Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

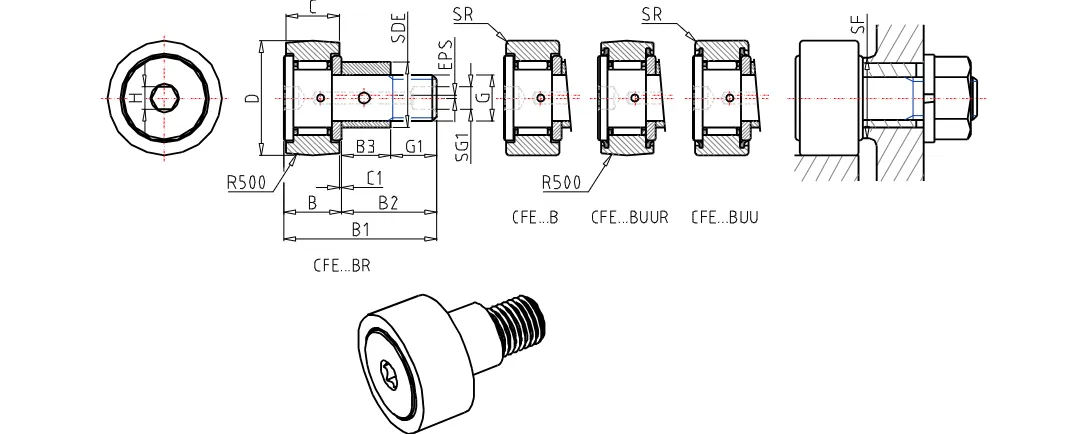

Detailed data of

CFE101B

Order Number CFE10-1B
Diameter of the eccentricity color 13 mm
Outer Diameter 26 mm
Width 12 mm
Diameter of the eccentricity color 13 mm
Thread M10x1.25 Dimension
10.5 mm
Maximum width 13.2 mm
Max.Total length 36.2 mm
Length 23.0 mm
Dimension 0.6 mm
Diameter - mm
Length 12.5 mm
Dimension 4 mm
rs min. 0.3 mm
Eccentricity 0.4 mm
Diameter - mm
Min.Dimension related to the installation 16 mm
Maximum tightening torque 13.8 Nm
Basic dynamic load rating 5430 N
Basic static load rating 6890 N
Max.Static allowable load 6890 N
CETC1 3.500 mm
CETC2 8.500 mm
GD 4.000 mm
Mass 65.0 g
