IKO CFE101UUM

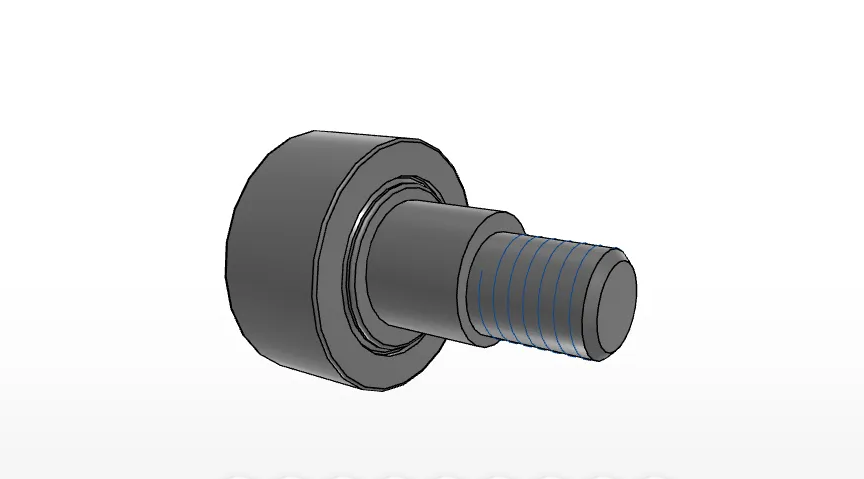

Eccentric Collar Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Sealed, Screw Driver Slot, Fine Thread
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

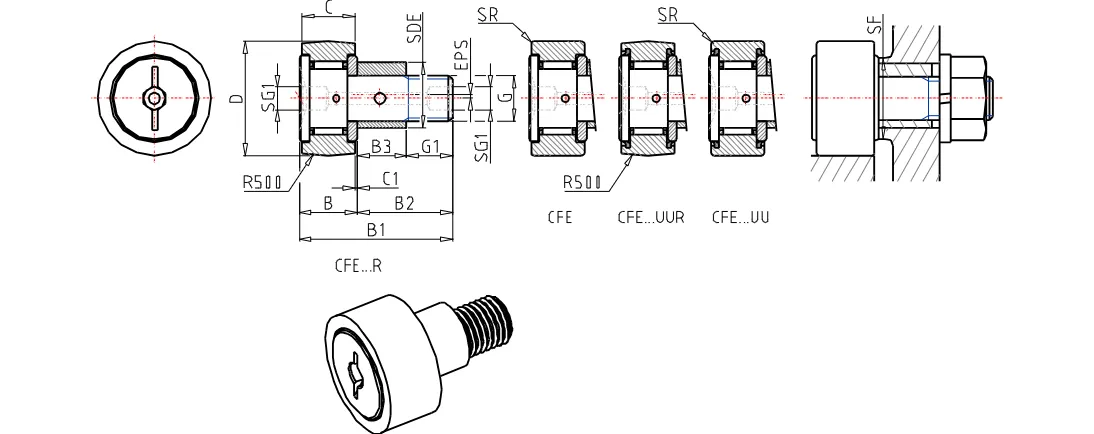

Detailed data of

CFE101UUM

Order Number CFE10-1UU
Diameter of the eccentricity color 13 mm
Outer Diameter 26 mm
Width 12 mm
Diameter of the eccentricity color 13 mm
Thread M10x1.25 Dimension
10.5 mm
Maximum width 13.2 mm
Max.Total length 36.2 mm
Length 23.0 mm
Dimension 0.6 mm
Diameter 4 mm
Length 12.5 mm
rs min. 0.3 mm
Eccentricity 0.4 mm
Min.Dimension related to the installation 16 mm
Maximum tightening torque 13.8 Nm
Basic dynamic load rating 5430 N
Basic static load rating 6890 N
Max.Static allowable load 6890 N
Mass 65.0 g
