IKO CFE121BUU

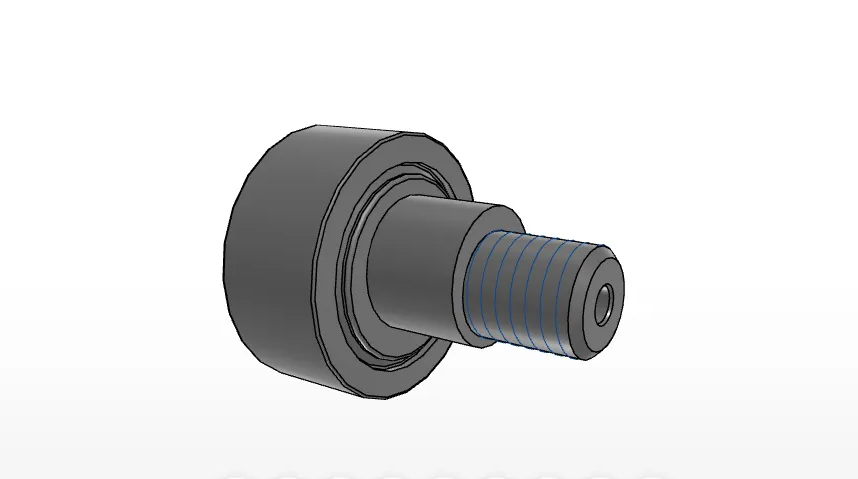

Eccentric Collar Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Sealed, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

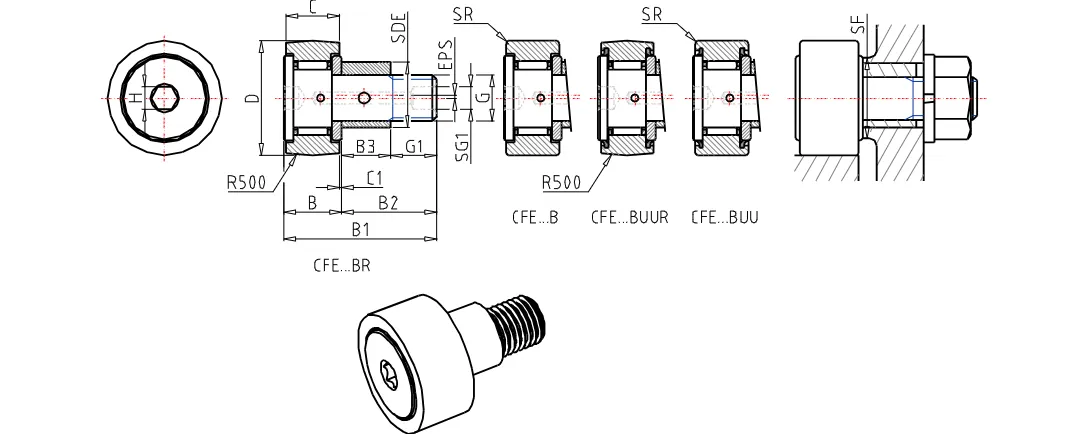

Detailed data of

CFE121BUU

Order Number CFE12-1BUU
Diameter of the eccentricity color 16 mm
Outer Diameter 32 mm
Width 14 mm
Diameter of the eccentricity color 16 mm
Thread M12x1.5 Dimension
11.5 mm
Maximum width 15.2 mm
Max.Total length 40.2 mm
Length 25.0 mm
Dimension 0.6 mm
Diameter 4 mm
Length 13.5 mm
Dimension 6 mm
rs min. 0.6 mm
Eccentricity 0.8 mm
Diameter 3 mm
Min.Dimension related to the installation 21 mm
Maximum tightening torque 21.9 Nm
Basic dynamic load rating 7910 N
Basic static load rating 9790 N
Max.Static allowable load 9790 N
CETC1 0.000 mm
CETC2 0.000 mm
GD 0.000 mm
Mass 115.0 g
