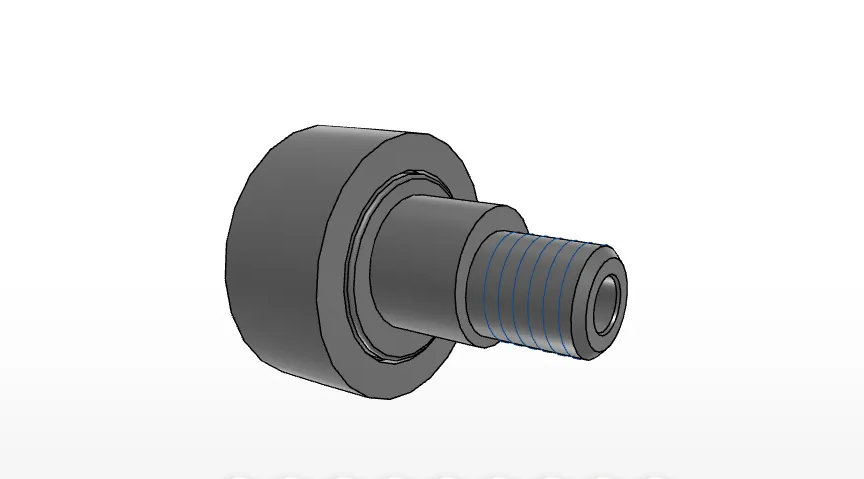

IKO CFE121VR

Eccentric Collar Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

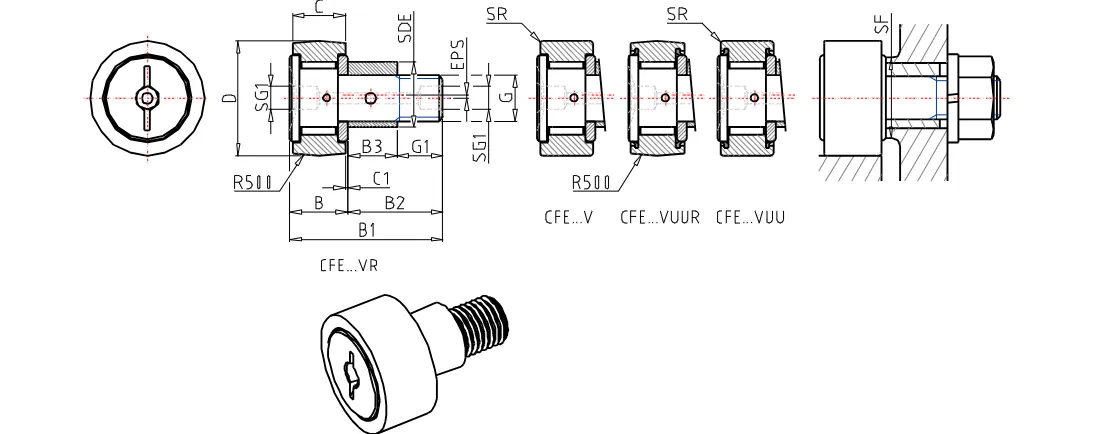

Detailed data of

CFE121VR

Order Number CFE12-1VR
Diameter of the eccentricity color 16 mm
Outer Diameter 32 mm
Width 14 mm
Diameter of the eccentricity color 16 mm
Thread M12x1.5 Dimension
11.5 mm
Maximum width 15.2 mm
Max.Total length 40.2 mm
Length 25.0 mm
Dimension 0.6 mm
Diameter 6 mm
Length 13.5 mm
rs min. 0.6 mm
Eccentricity 0.8 mm
Min.Dimension related to the installation 21 mm
Maximum tightening torque 21.9 Nm
Basic dynamic load rating 13500 N
Basic static load rating 19700 N
Max.Static allowable load 13200 N
Mass 117.0 g
