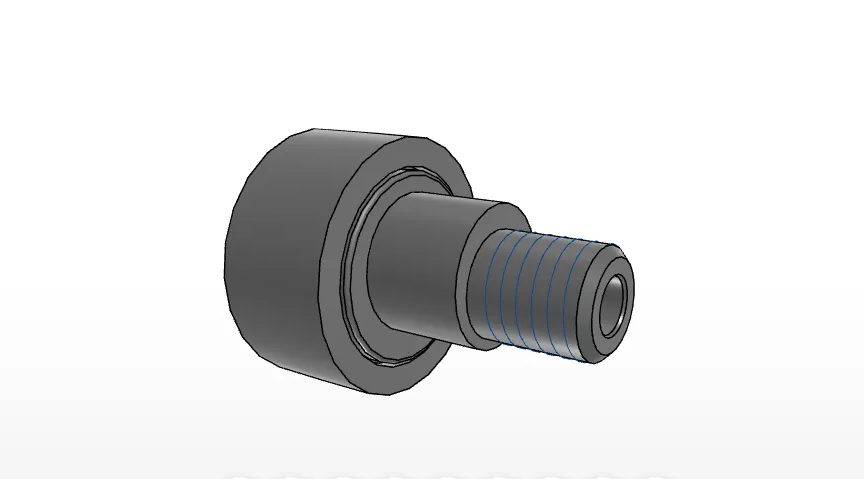

IKO CFE12VR
Eccentric Collar Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CFE12VR
Diameter of the eccentricity color
16
mm
Outer Diameter
30
mm
Width
14
mm
Diameter of the eccentricity color
16
mm
Thread
M12x1.5
Dimension
11.5
mm
Maximum width
15.2
mm
Max.Total length
40.2
mm
Length
25.0
mm
Dimension
0.6
mm
Diameter
6
mm
Length
13.5
mm
rs min.
0.6
mm
Eccentricity
0.8
mm
Min.Dimension related to the installation
21
mm
Maximum tightening torque
21.9
Nm
Basic dynamic load rating
13500
N
Basic static load rating
19700
N
Max.Static allowable load
13200
N
Mass
107.0
g
