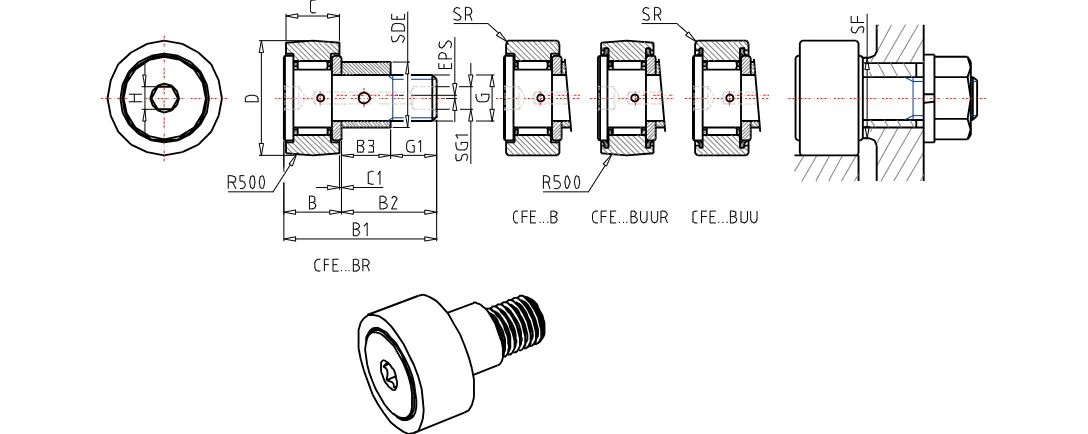

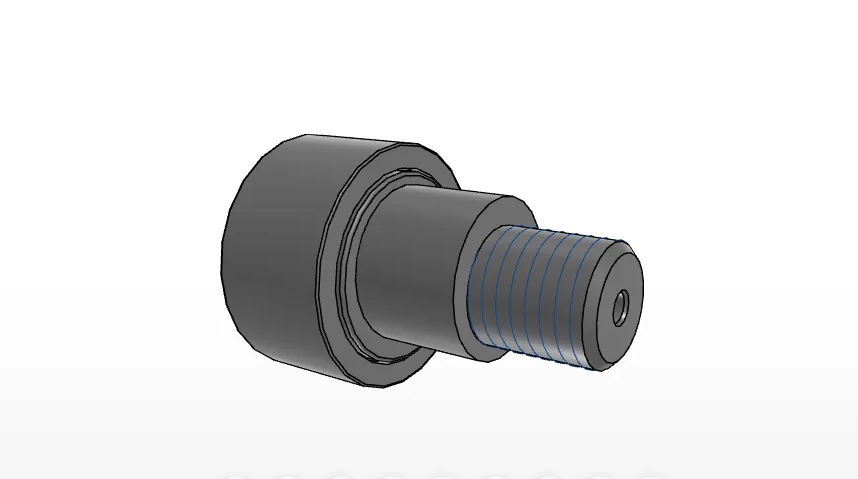

IKO CFE16B
Eccentric Collar Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
Order Number
CFE16B
Diameter of the eccentricity color
22
mm
Outer Diameter
35
mm
Width
18
mm
Diameter of the eccentricity color
22
mm
Thread
M16x1.5
Dimension
15.5
mm
Maximum width
19.6
mm
Max.Total length
52.1
mm
Length
32.5
mm
Dimension
0.8
mm
Diameter
4
mm
Length
17.0
mm
Dimension
6
mm
rs min.
0.6
mm
Eccentricity
0.8
mm
Diameter
3
mm
Min.Dimension related to the installation
26
mm
Maximum tightening torque
58.5
Nm
Basic dynamic load rating
12000
N
Basic static load rating
18300
N
Max.Static allowable load
18300
N
CETC1
0.000
mm
CETC2
0.000
mm
GD
0.000
mm
Mass
190.0
g
