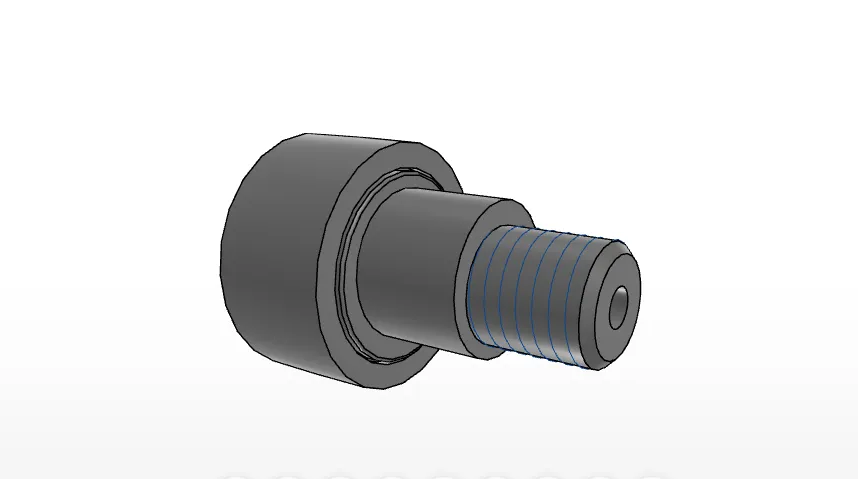

IKO CFE18VBR
Eccentric Collar Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CFE18VBR
Diameter of the eccentricity color
24
mm
Outer Diameter
40
mm
Width
20
mm
Diameter of the eccentricity color
24
mm
Thread
M18x1.5
Dimension
17.5
mm
Maximum width
21.6
mm
Max.Total length
58.1
mm
Length
36.5
mm
Dimension
0.8
mm
Diameter
6
mm
Length
19.0
mm
Dimension
8
mm
rs min.
1.0
mm
Eccentricity
0.8
mm
Min.Dimension related to the installation
29
mm
Maximum tightening torque
86.2
Nm
Basic dynamic load rating
25300
N
Basic static load rating
51300
N
Max.Static allowable load
31100
N
CETC1
0.000
mm
CETC2
0.000
mm
GD
0.000
mm
Mass
285
g
