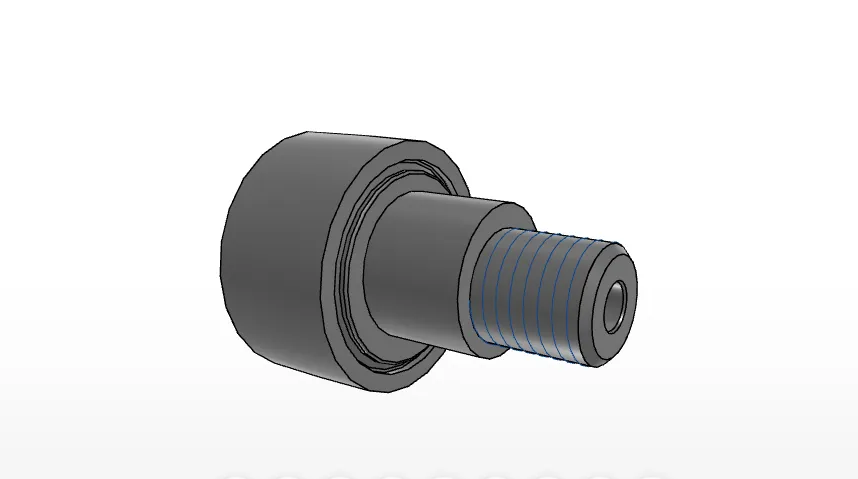

IKO CFE201BUUR
Eccentric Collar Metric Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Sealed, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CFE20-1BUUR
Diameter of the eccentricity color
27
mm
Outer Diameter
47
mm
Width
24
mm
Diameter of the eccentricity color
27
mm
Thread
M20x1.5
Dimension
19.5
mm
Maximum width
25.6
mm
Max.Total length
66.1
mm
Length
40.5
mm
Dimension
0.8
mm
Diameter
8
mm
Length
21.0
mm
Dimension
8
mm
rs min.
-
mm
Eccentricity
0.8
mm
Diameter
4
mm
Min.Dimension related to the installation
34
mm
Maximum tightening torque
119.0
Nm
Basic dynamic load rating
20700
N
Basic static load rating
34600
N
Max.Static allowable load
34600
N
CETC1
0.000
mm
CETC2
0.000
mm
GD
0.000
mm
Mass
425.0
g
