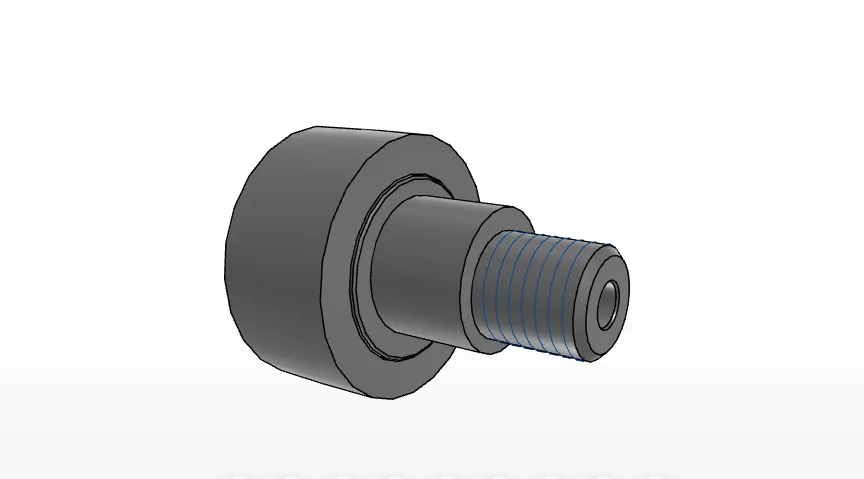

IKO CFE20VR
Eccentric Collar Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock
Order Number
CFE20VR
Diameter of the eccentricity color
27
mm
Outer Diameter
52
mm
Width
24
mm
Diameter of the eccentricity color
27
mm
Thread
M20x1.5
Dimension
19.5
mm
Maximum width
25.6
mm
Max.Total length
66.1
mm
Length
40.5
mm
Dimension
0.8
mm
Diameter
8
mm
Length
21.0
mm
rs min.
1.0
mm
Eccentricity
0.8
mm
Min.Dimension related to the installation
34
mm
Maximum tightening torque
119.0
Nm
Basic dynamic load rating
33200
N
Basic static load rating
64500
N
Max.Static allowable load
37500
N
Mass
505.0
g
