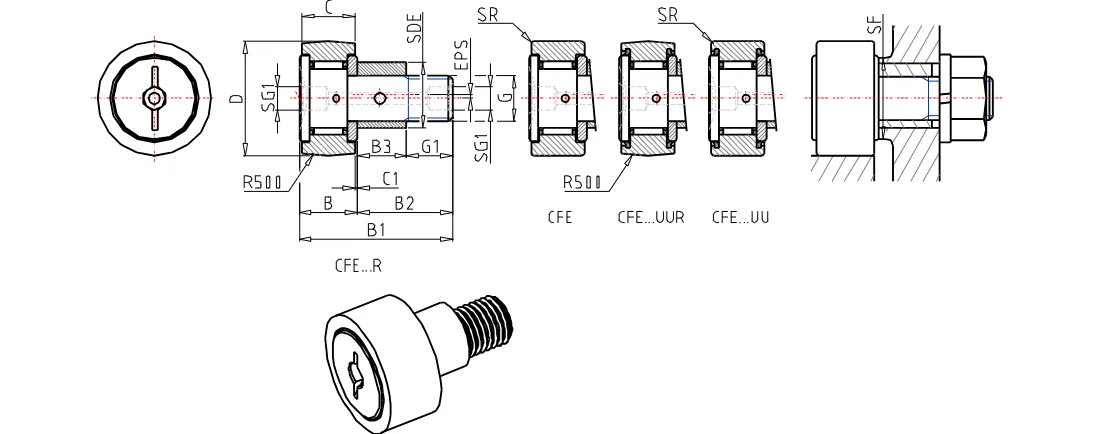

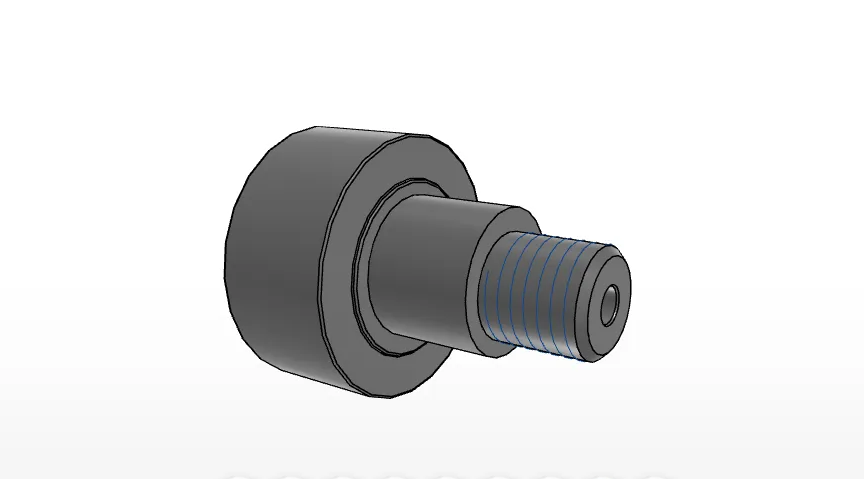

IKO CFE24
Eccentric Collar Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock
Order Number
CFE24
Diameter of the eccentricity color
33
mm
Outer Diameter
62
mm
Width
29
mm
Diameter of the eccentricity color
33
mm
Thread
M24x1.5
Dimension
25.5
mm
Maximum width
30.6
mm
Max.Total length
80.1
mm
Length
49.5
mm
Dimension
0.8
mm
Diameter
8
mm
Length
24.0
mm
rs min.
1
mm
Eccentricity
0.8
mm
Min.Dimension related to the installation
40
mm
Maximum tightening torque
215.0
Nm
Basic dynamic load rating
30500
N
Basic static load rating
52600
N
Max.Static allowable load
52000
N
Mass
895.0
g
