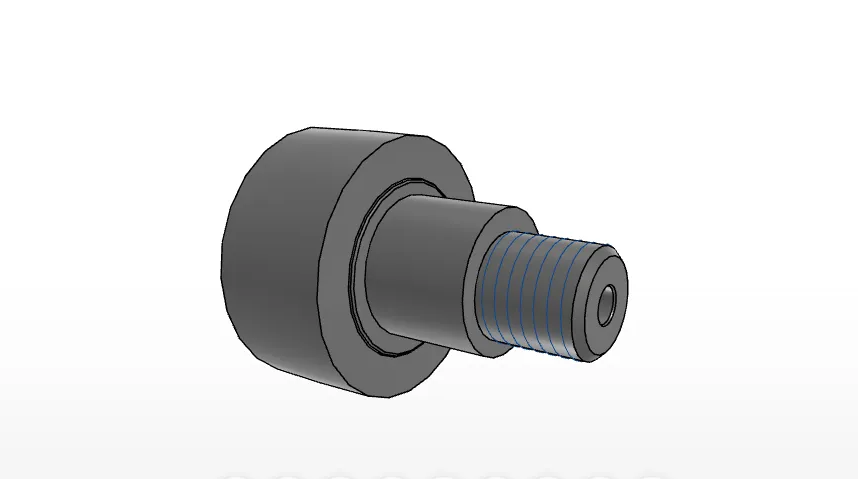

IKO CFE24BR

Eccentric Collar Metric Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Shielded, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

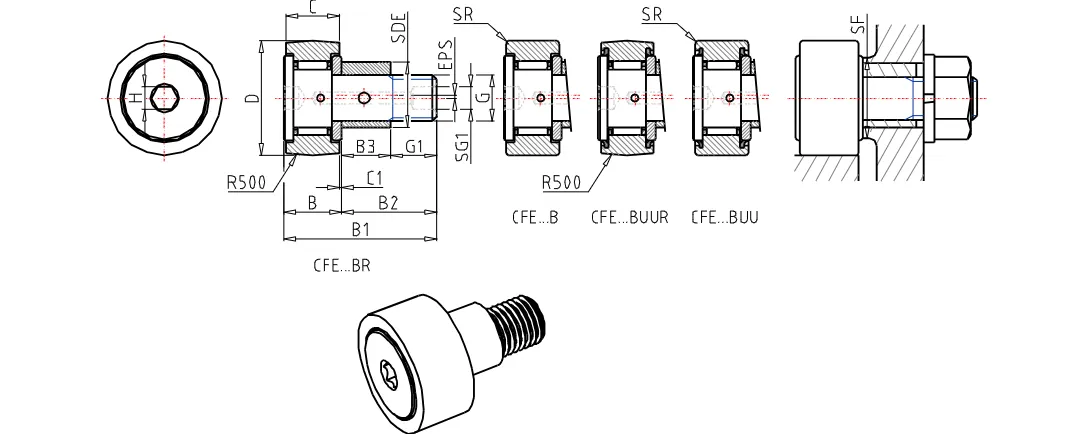

Detailed data of

CFE24BR

Order Number CFE24BR
Diameter of the eccentricity color 33 mm
Outer Diameter 62 mm
Width 29 mm
Diameter of the eccentricity color 33 mm
Thread M24x1.5 Dimension
25.5 mm
Maximum width 30.6 mm
Max.Total length 80.1 mm
Length 49.5 mm
Dimension 0.8 mm
Diameter 8 mm
Length 24.0 mm
Dimension 12 mm
rs min. - mm
Eccentricity 0.8 mm
Diameter 4 mm
Min.Dimension related to the installation 40 mm
Maximum tightening torque 215.0 Nm
Basic dynamic load rating 30500 N
Basic static load rating 52600 N
Max.Static allowable load 52000 N
CETC1 0.000 mm
CETC2 0.000 mm
GD 0.000 mm
Mass 895.0 g
