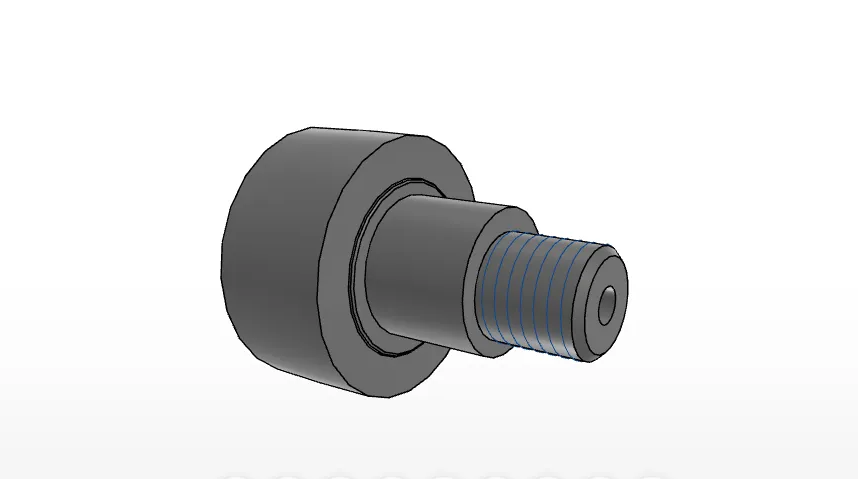

IKO CFE24VBR
Eccentric Collar Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CFE24VBR
Diameter of the eccentricity color
33
mm
Outer Diameter
62
mm
Width
29
mm
Diameter of the eccentricity color
33
mm
Thread
M24x1.5
Dimension
25.5
mm
Maximum width
30.6
mm
Max.Total length
80.1
mm
Length
49.5
mm
Dimension
0.8
mm
Diameter
8
mm
Length
24.0
mm
Dimension
12
mm
rs min.
1.0
mm
Eccentricity
0.8
mm
Min.Dimension related to the installation
40
mm
Maximum tightening torque
215.0
Nm
Basic dynamic load rating
46600
N
Basic static load rating
92000
N
Max.Static allowable load
52000
N
CETC1
0.000
mm
CETC2
0.000
mm
GD
0.000
mm
Mass
900
g
