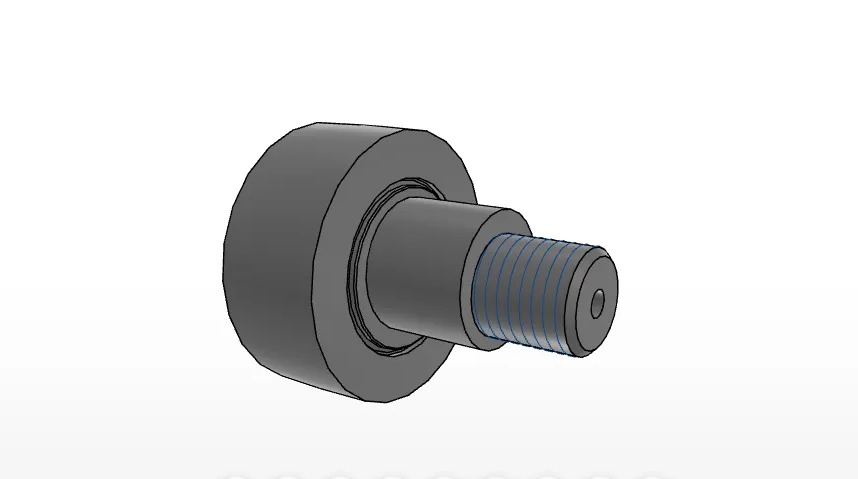

IKO CFE301VBUUR
Eccentric Collar Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Sealed, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
Order Number
CFE30-1VBUUR
Diameter of the eccentricity color
41
mm
Outer Diameter
85
mm
Width
35
mm
Diameter of the eccentricity color
41
mm
Thread
M30x1.5
Dimension
32.5
mm
Maximum width
37.0
mm
Max.Total length
100.0
mm
Length
63.0
mm
Dimension
1.0
mm
Diameter
8
mm
Length
30.5
mm
Dimension
17
mm
rs min.
1.0
mm
Eccentricity
1.5
mm
Min.Dimension related to the installation
49
mm
Maximum tightening torque
438.0
Nm
Basic dynamic load rating
67700
N
Basic static load rating
144000
N
Max.Static allowable load
85900
N
CETC1
0.000
mm
CETC2
0.000
mm
GD
0.000
mm
Mass
2190
g
