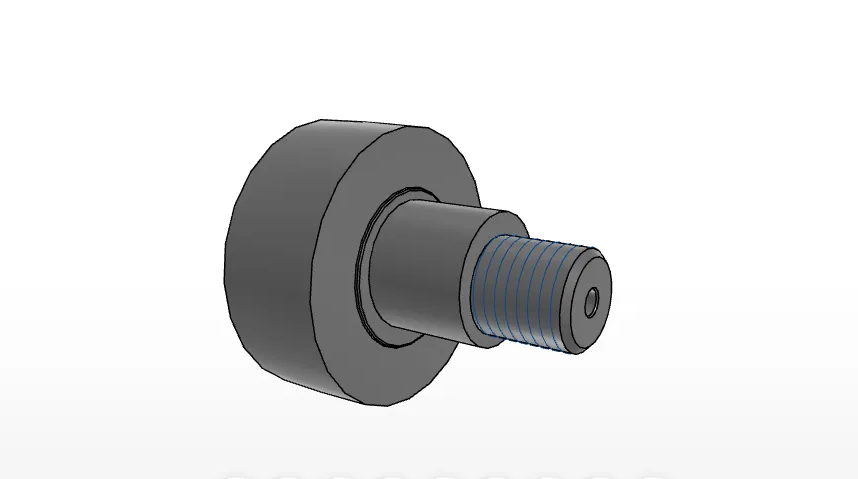

IKO CFE302BR

Eccentric Collar Metric Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Shielded, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

Detailed data of

CFE302BR

Order Number CFE30-2BR
Diameter of the eccentricity color 41 mm
Outer Diameter 90 mm
Width 35 mm
Diameter of the eccentricity color 41 mm
Thread M30x1.5 Dimension
32.5 mm
Maximum width 37.0 mm
Max.Total length 100.0 mm
Length 63.0 mm
Dimension 1.0 mm
Diameter 8 mm
Length 30.5 mm
Dimension 17 mm
rs min. - mm
Eccentricity 1.5 mm
Diameter 4 mm
Min.Dimension related to the installation 49 mm
Maximum tightening torque 438.0 Nm
Basic dynamic load rating 45400 N
Basic static load rating 85100 N
Max.Static allowable load 85100 N
CETC1 0.000 mm
CETC2 0.000 mm
GD 0.000 mm
Mass 2380.0 g
