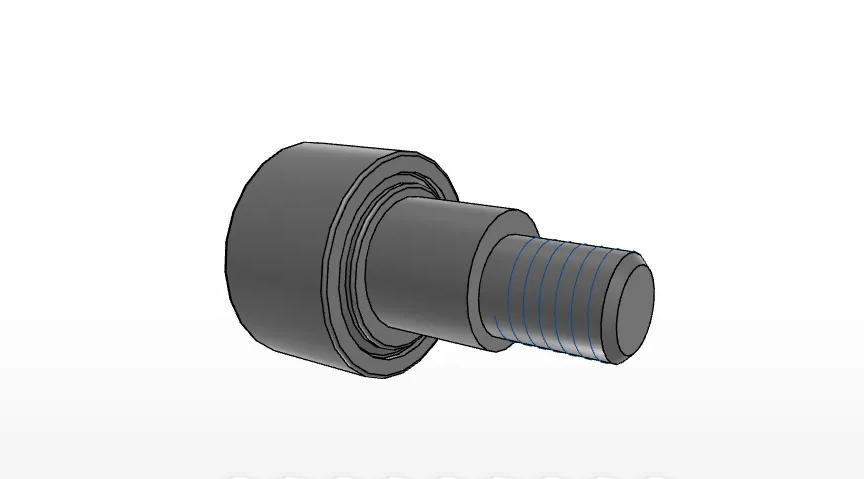

IKO CFE8VUU
Eccentric Collar Metric Cam Follower, Full Complement, High Carbon Steel, Cylindrical Outer Ring, Sealed, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CFE8VUU

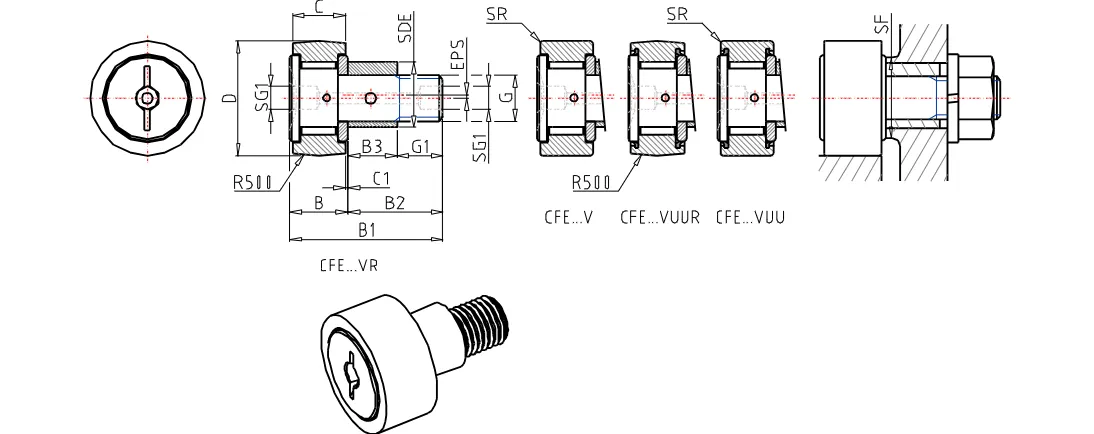

Diameter of the eccentricity color
11
mm
Outer Diameter
19
mm
Width
11
mm
Diameter of the eccentricity color
11
mm
Thread
M8x1.25
Dimension
9.5
mm
Maximum width
12.2
mm
Max.Total length
32.2
mm
Length
20.0
mm
Dimension
0.6
mm
Diameter
4
mm
Length
10.5
mm
rs min.
0.3
mm
Eccentricity
0.4
mm
Min.Dimension related to the installation
13
mm
Maximum tightening torque
6.5
Nm
Basic dynamic load rating
8170
N
Basic static load rating
11200
N
Max.Static allowable load
4620
N
Mass
32.5
g
