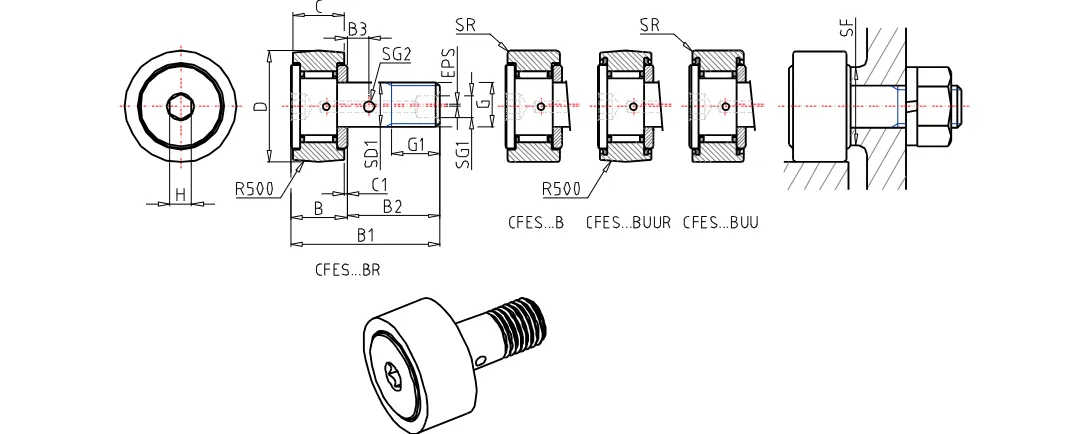

IKO CFES12BUUR
Eccentric Stud Metric Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Sealed, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CFES12BUUR
Stud Diameter
12
mm
Outer Diameter
30
mm
Width
14
mm
Stud Diameter
12
mm
Thread
M12x1.5
Length
13
mm
Maximum width
15.2
mm
Max.Total length
40.2
mm
Length
25.0
mm
Dimension
6
mm
Dimension
0.6
mm
Diameter
4
mm
Diameter
3
mm
Dimension
6
mm
rs min.
-
mm
Eccentricity
0.40
mm
Min.Dimension related to the installation
21
mm
Maximum tightening torque
21.9
Nm
Basic dynamic load rating
7910
N
Basic static load rating
9790
N
Max.Static allowable load
9790
N
Mass
95.0
g
