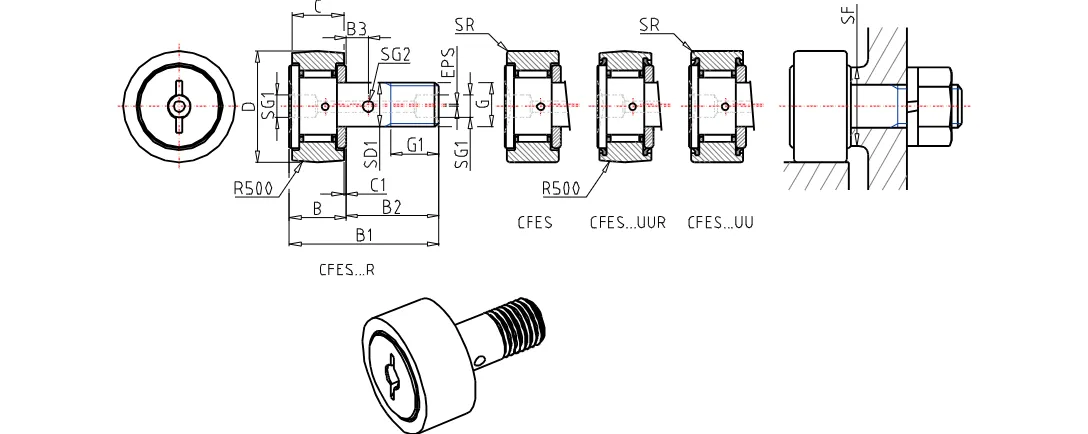

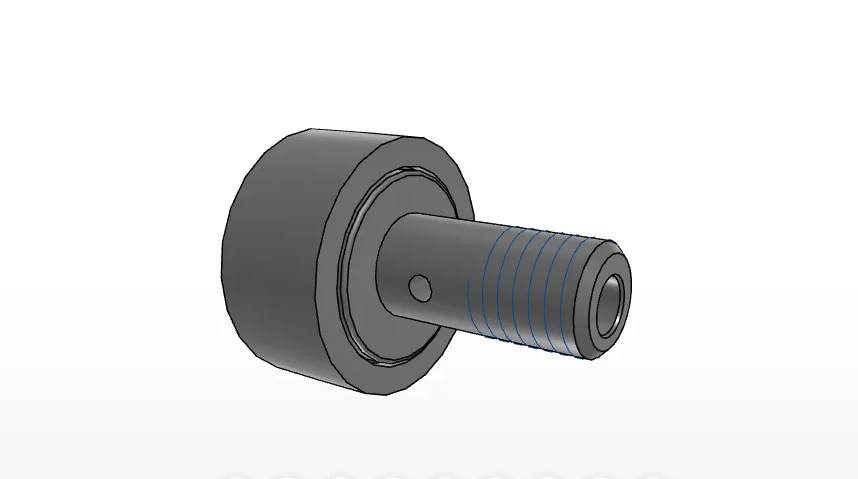

IKO CFES12R

Eccentric Stud Metric Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

Detailed data of

CFES12R

Order Number CFES12R
Stud Diameter 12 mm
Outer Diameter 30 mm
Width 14 mm
Stud Diameter 12 mm
Thread M12x1.5 Length
13 mm
Maximum width 15.2 mm
Max.Total length 40.2 mm
Length 25.0 mm
Dimension 6 mm
Dimension 0.6 mm
Diameter 6 mm
Diameter 3 mm
rs min. - mm
Eccentricity 0.40 mm
Min.Dimension related to the installation 21 mm
Maximum tightening torque 21.9 Nm
Basic dynamic load rating 7910 N
Basic static load rating 9790 N
Max.Static allowable load 9790 N
Mass 95.0 g
