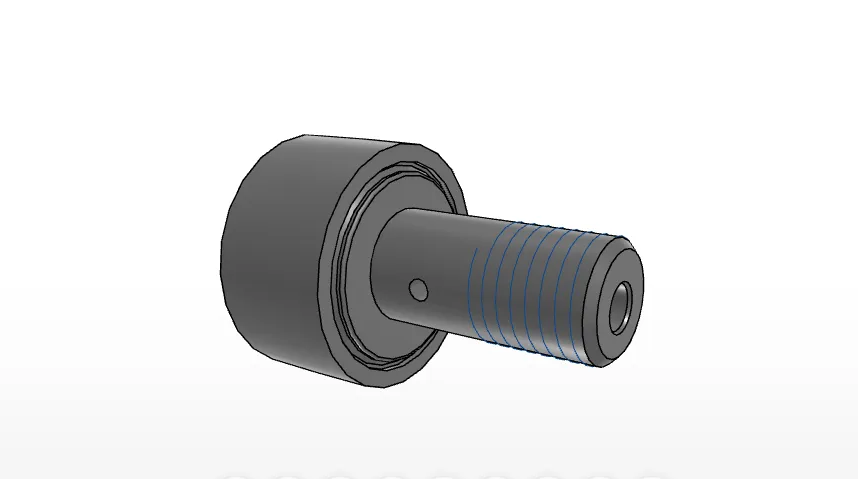

IKO CFES16UUR

Eccentric Stud Metric Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Sealed, Screw Driver Slot,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

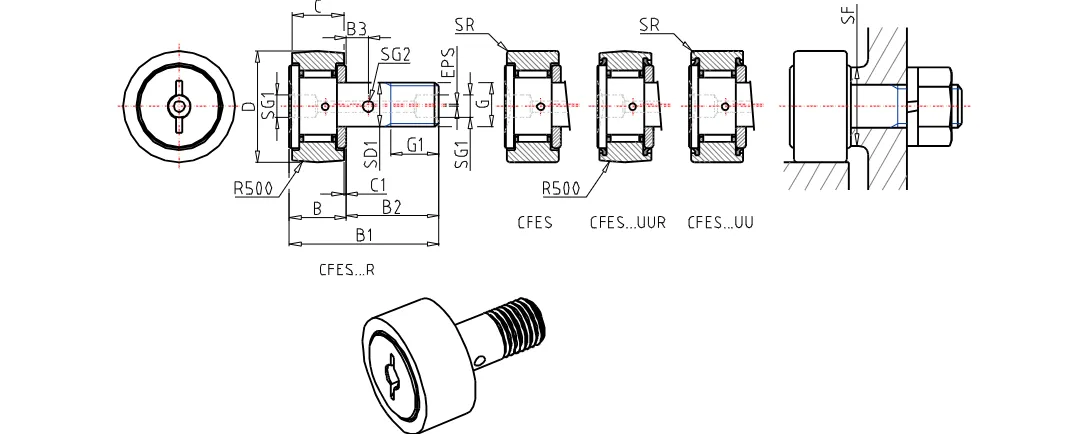

Detailed data of

CFES16UUR

Order Number CFES16UUR
Stud Diameter 16 mm
Outer Diameter 35 mm
Width 18 mm
Stud Diameter 16 mm
Thread M16x1.5 Length
17 mm
Maximum width 19.6 mm
Max.Total length 52.1 mm
Length 32.5 mm
Dimension 8 mm
Dimension 0.8 mm
Diameter 6 mm
Diameter 3 mm
rs min. - mm
Eccentricity 0.50 mm
Min.Dimension related to the installation 26 mm
Maximum tightening torque 58.5 Nm
Basic dynamic load rating 12000 N
Basic static load rating 18300 N
Max.Static allowable load 18300 N
Mass 170.0 g
