IKO CFES6BUUR

Eccentric Stud Metric Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Sealed, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

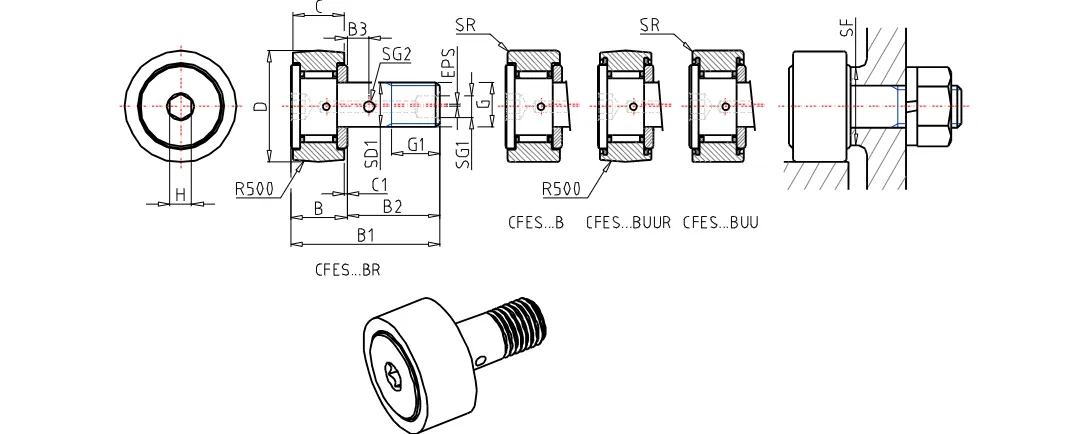

Detailed data of

CFES6BUUR

Order Number CFES6BUUR
Stud Diameter 6 mm
Outer Diameter 16 mm
Width 11 mm
Stud Diameter 6 mm
Thread M6x1 Length
8 mm
Maximum width 12.2 mm
Max.Total length 28.2 mm
Length 16.0 mm
Dimension - mm
Dimension 0.6 mm
Diameter - mm
Diameter - mm
Dimension 3 mm
rs min. - mm
Eccentricity 0.25 mm
Min.Dimension related to the installation 11 mm
Maximum tightening torque 2.7 Nm
Basic dynamic load rating 3660 N
Basic static load rating 3650 N
Max.Static allowable load 1980 N
Mass 18.5 g
