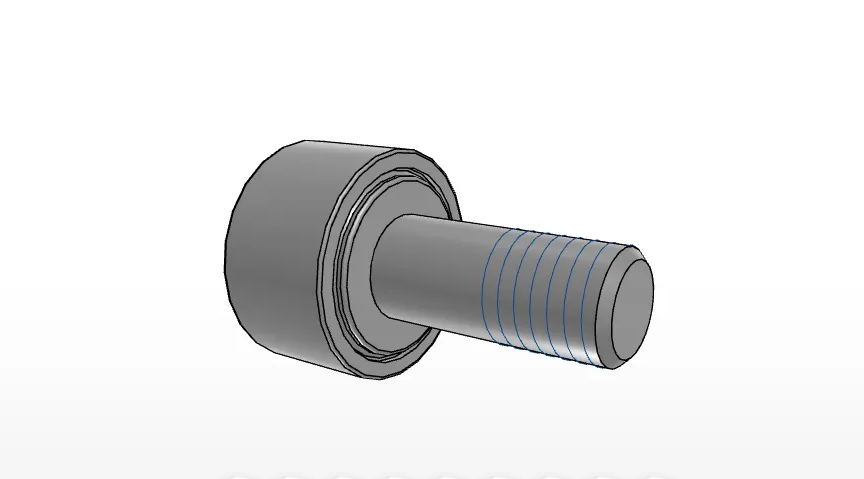

IKO CFFU110
Centralized Lubrication Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock
Order Number
CF-FU1-10
Stud Diameter
10
mm
Outer Diameter
22
mm
Width
12
mm
Stud Diameter
10
mm
Thread
M10x1.25
Length
12
mm
Maximum width
13.2
mm
Max.Total length
36.2
mm
Length
23.0
mm
Dimension
-
mm
Dimension
0.6
mm
Diameter
-
mm
Thread
M6x0.75
rs min.
0.3
mm
Min.Dimension related to the installation
16
mm
Maximum tightening torque
13.8
Nm
Basic dynamic load rating
5430
N
Basic static load rating
6890
N
Max.Static allowable load
6890
N
Mass
45.0
g
IKO CFFU110 Cam Follower Specifications

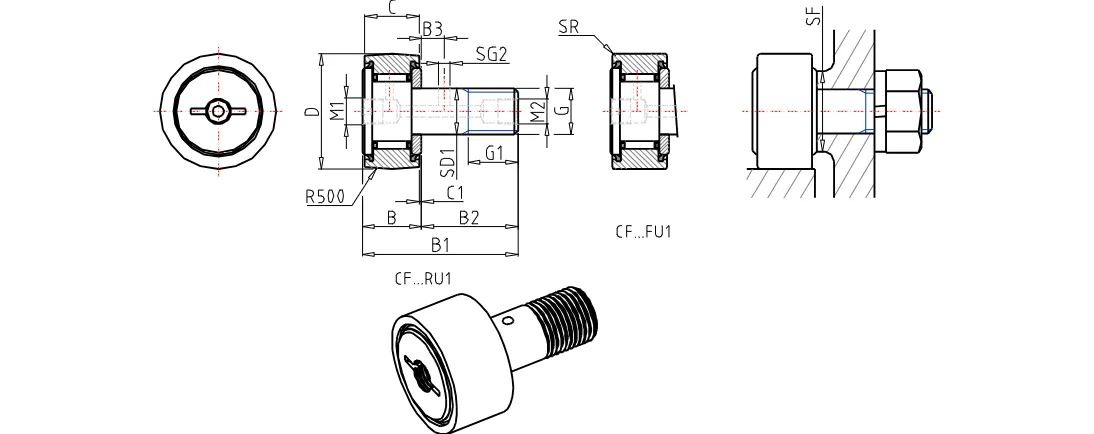

What are the basic dimensions of the CFFU110?
The IKO CFFU110 is a cam follower with order number CF-FU1-10. It has a 10 mm stud diameter, 22 mm outer diameter, and 12 mm width. Additional dimensions include a maximum width of 13.2 mm, maximum total length of 36.2 mm, and a length of 23.0 mm.
- Thread: M10x1.25
- Mass: 45.0 g
- Minimum installation dimension: 16 mm
- Maximum tightening torque: 13.8 Nm
CFFU110 Construction and Design Features
What materials and structure does the CFFU110 use?
The CFFU110 is constructed from high carbon steel and uses a cage type internal structure. It features a cylindrical outer ring, a shielded design, a screw driver slot, and a centralized lubrication configuration.
- Bearing type: Cam Followers
- Internal structure: Cage Type
- Material: High Carbon Steel
- Outer ring: Cylindrical
CFFU110 Load Ratings and Product Identification
What load ratings are listed for the CFFU110?
The supplied product data lists the following load ratings for the CFFU110 cam follower:
- Basic dynamic load rating: 5430 N
- Basic static load rating: 6890 N
- Maximum static allowable load: 6890 N
The bearing is categorized under Brand > IKO > Cam Followers within the IKO Cam Followers product series.
