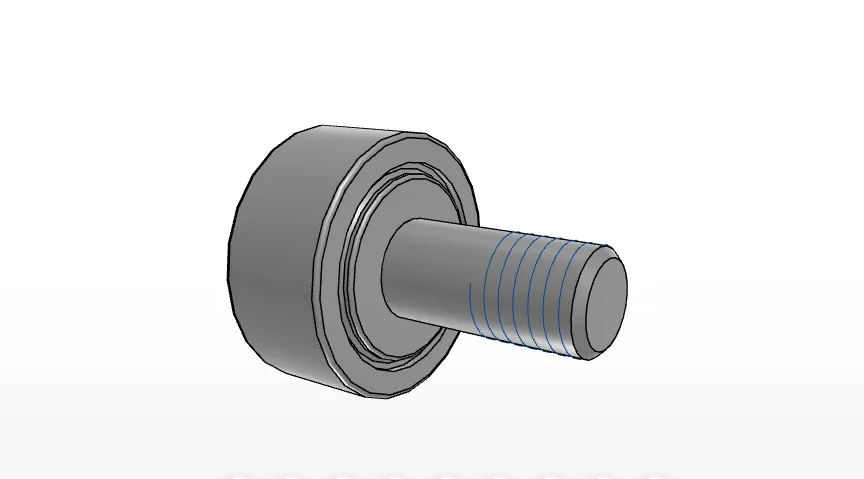

IKO CFFU1121
Centralized Lubrication Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock

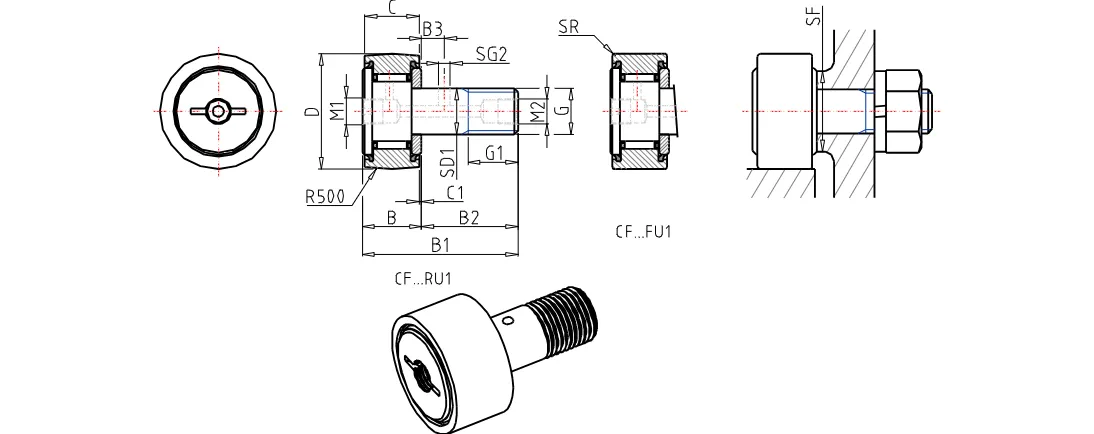

Order Number
CF-FU1-12-1
Stud Diameter
12
mm
Outer Diameter
32
mm
Width
14
mm
Stud Diameter
12
mm
Thread
M12x1.5
Length
13
mm
Maximum width
15.2
mm
Max.Total length
40.2
mm
Length
25.0
mm
Dimension
6
mm
Dimension
0.6
mm
Diameter
3
mm
Thread
M6x0.75
rs min.
0.6
mm
Min.Dimension related to the installation
21
mm
Maximum tightening torque
23.9
Nm
Basic dynamic load rating
7910
N
Basic static load rating
9790
N
Max.Static allowable load
9790
N
Mass
105.0
g
IKO CFFU1121 Cam Follower Basics
What type of bearing is the CFFU1121?
The IKO CFFU1121 is part of the Cam Followers product series and is listed under the IKO cam follower category. Its order number is CF-FU1-12-1.
- Bearing type: Cam Followers
- Brand: IKO
- Model: CFFU1121
- Internal structure: Cage Type
CFFU1121 Construction and Materials
What construction details are provided for this cam follower?
The supplied product data identifies the CFFU1121 as a centralized lubrication cam follower made from high carbon steel. It has a cylindrical outer ring, caged internal structure, shielding, and a screwdriver slot.
- Material: High Carbon Steel
- Outer ring: Cylindrical
- Configuration: Caged and shielded
- Lubrication feature: Centralized lubrication design
- Drive feature: Screwdriver slot
CFFU1121 Dimensions and Load Data
What dimensions and load ratings are specified?
The listed dimensions include a 12 mm stud diameter, 32 mm outer diameter, 14 mm width, M12x1.5 stud thread, and 105.0 g mass. The supplied load ratings are 7910 N basic dynamic load rating and 9790 N basic static load rating.
- Stud diameter: 12 mm
- Outer diameter: 32 mm
- Width: 14 mm
- Thread: M12x1.5
- Maximum total length: 40.2 mm
- Maximum tightening torque: 23.9 Nm
- Basic dynamic load rating: 7910 N
- Basic static load rating: 9790 N
- Mass: 105.0 g
