IKO CFFU118
Centralized Lubrication Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock
Order Number
CF-FU1-18
Stud Diameter
18
mm
Outer Diameter
40
mm
Width
20
mm
Stud Diameter
18
mm
Thread
M18x1.5
Length
19
mm
Maximum width
21.6
mm
Max.Total length
58.1
mm
Length
36.5
mm
Dimension
8
mm
Dimension
0.8
mm
Diameter
3
mm
Thread
PT 1/8
rs min.
1.0
mm
Min.Dimension related to the installation
29
mm
Maximum tightening torque
86.2
Nm
Basic dynamic load rating
14800
N
Basic static load rating
25200
N
Max.Static allowable load
25200
N
Mass
250.0
g

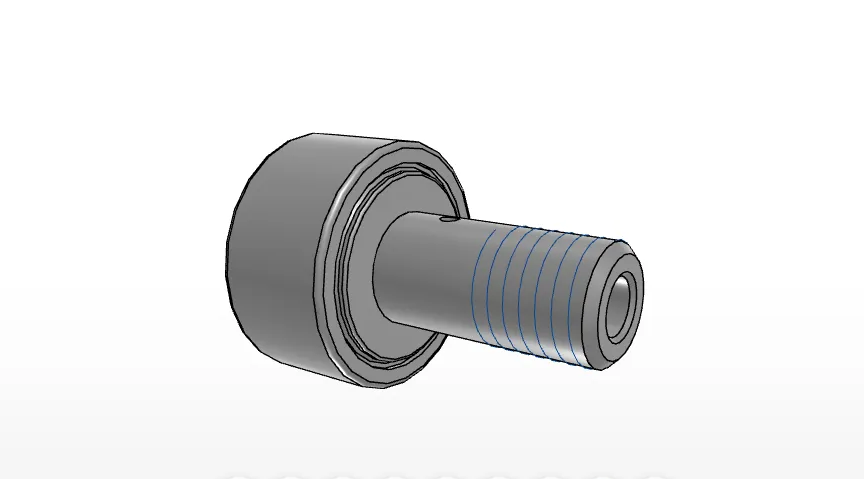

IKO CFFU118 Cam Follower Overview
What is the CFFU118?
The IKO CFFU118 is a cam follower in the IKO Cam Followers series. The supplied product data identifies it as a centralized lubrication, caged, shielded unit with a cylindrical outer ring, screwdriver slot, and high carbon steel construction.
- Brand: IKO
- Order Number: CF-FU1-18
- Bearing Type: Cam Followers
- Internal Structure: Cage Type
- Material: High Carbon Steel

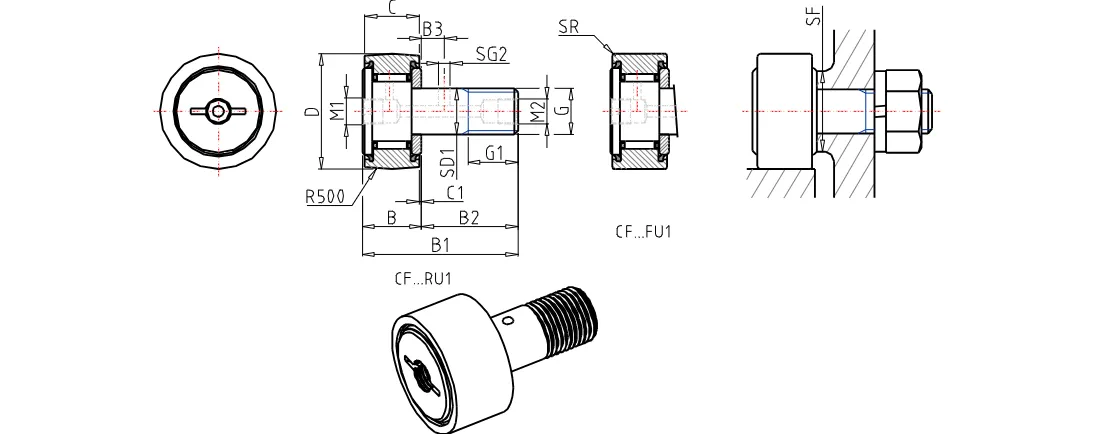

CFFU118 Dimensions and Connection Details
What dimensions are provided for the CFFU118?
The product data lists the following measurements for the CFFU118:
- Stud Diameter: 18 mm
- Outer Diameter: 40 mm
- Width: 20 mm
- Thread: M18x1.5
- Thread Length: 19 mm
- Maximum Width: 21.6 mm
- Maximum Total Length: 58.1 mm
- Length: 36.5 mm
- Dimension: 8 mm
- Dimension: 0.8 mm
- Diameter: 3 mm
- Lubrication Thread: PT 1/8
- rs min.: 1.0 mm
- Minimum Installation-Related Dimension: 29 mm
CFFU118 Load Ratings and Product Specifications
What load and torque values are stated in the product data?
The supplied specifications include the following load ratings, torque value, and mass:
- Basic Dynamic Load Rating: 14,800 N
- Basic Static Load Rating: 25,200 N
- Maximum Static Allowable Load: 25,200 N
- Maximum Tightening Torque: 86.2 Nm
- Mass: 250.0 g
Use these stated values when reviewing or specifying the IKO CFFU118 based on the supplied product data.
