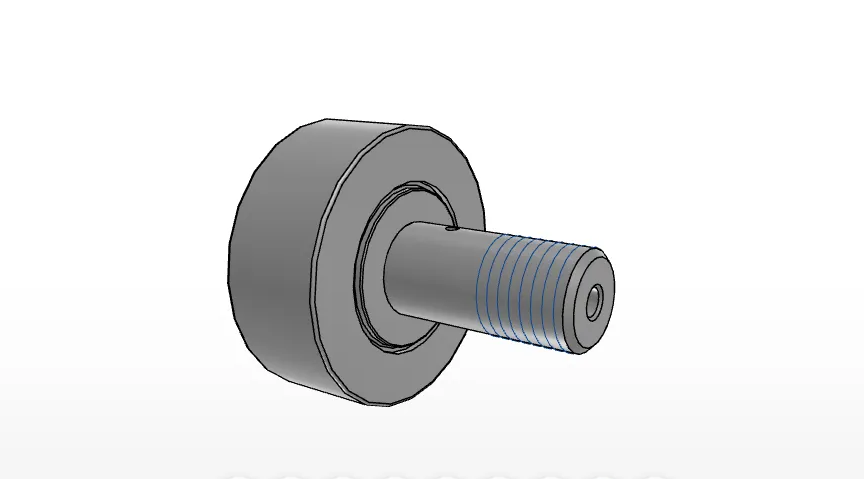

IKO CFFU1302
Centralized Lubrication Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock
Order Number
CF-FU1-30-2
Stud Diameter
30
mm
Outer Diameter
90
mm
Width
35
mm
Stud Diameter
30
mm
Thread
M30x1.5
Length
32
mm
Maximum width
37.0
mm
Max.Total length
100.0
mm
Length
63.0
mm
Dimension
15
mm
Dimension
1.0
mm
Diameter
4
mm
Thread
PT 1/8
rs min.
1.0
mm
Min.Dimension related to the installation
49
mm
Maximum tightening torque
438.0
Nm
Basic dynamic load rating
45400
N
Basic static load rating
85100
N
Max.Static allowable load
85100
N
Mass
2220.0
g
IKO CFFU1302 Cam Follower Product Overview
What is the IKO CFFU1302?
The IKO CFFU1302 is a cam follower in the IKO Cam Followers series. It uses a caged internal structure, high carbon steel bearing material, a cylindrical outer ring, shields, and a screwdriver slot. The listed order number is CF-FU1-30-2.
IKO CFFU1302 Dimensions and Installation Data
What dimensions and fastener details are provided?
- Stud diameter: 30 mm
- Outer diameter: 90 mm
- Width: 35 mm
- Thread: M30x1.5
- Thread length: 32 mm
- Maximum width: 37.0 mm
- Length: 63.0 mm
- Maximum total length: 100.0 mm
- Minimum installation-related dimension: 49 mm
- Maximum tightening torque: 438.0 Nm
IKO CFFU1302 Load Ratings and Additional Specifications
What performance-related values are supplied?
The supplied product data lists a basic dynamic load rating of 45,400 N, a basic static load rating of 85,100 N, and a maximum static allowable load of 85,100 N. Additional details include a PT 1/8 thread, 4 mm diameter, 15 mm dimension, 1.0 mm minimum radius or related dimension, and a mass of 2,220.0 g.
