IKO CFFU18
Centralized Lubrication Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock
Order Number
CF-FU1-8
Stud Diameter
8
mm
Outer Diameter
19
mm
Width
11
mm
Stud Diameter
8
mm
Thread
M8x1.25
Length
10
mm
Maximum width
12.2
mm
Max.Total length
32.2
mm
Length
20.0
mm
Dimension
-
mm
Dimension
0.6
mm
Diameter
-
mm
Thread
M6x0.75
rs min.
0.3
mm
Min.Dimension related to the installation
13
mm
Maximum tightening torque
6.5
Nm
Basic dynamic load rating
4250
N
Basic static load rating
4740
N
Max.Static allowable load
4620
N
Mass
28.5
g

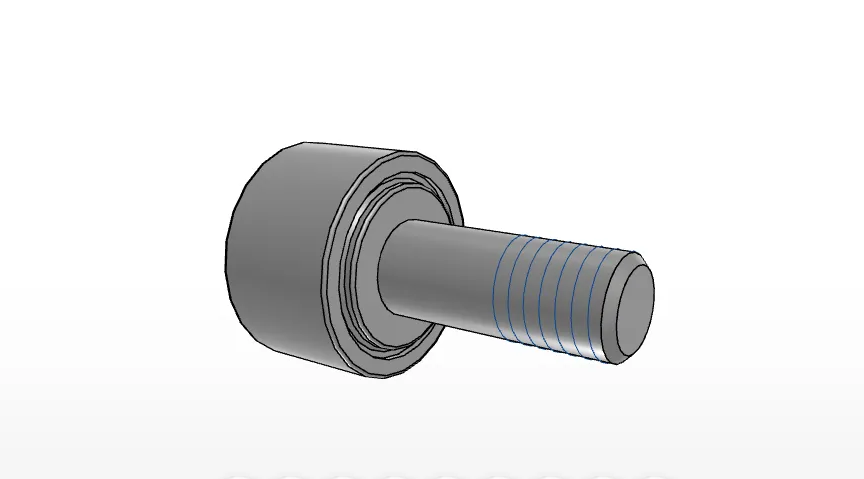

The IKO CFFU18 Is a Caged Cam Follower
What type of bearing is the CFFU18?
The IKO CFFU18 is listed in the Cam Followers product series and category. It uses a cage type internal structure and has a cylindrical outer ring.
- Brand: IKO
- Model: CFFU18
- Order Number: CF-FU1-8
- Bearing Type: Cam Followers
- Internal Structure: Cage Type

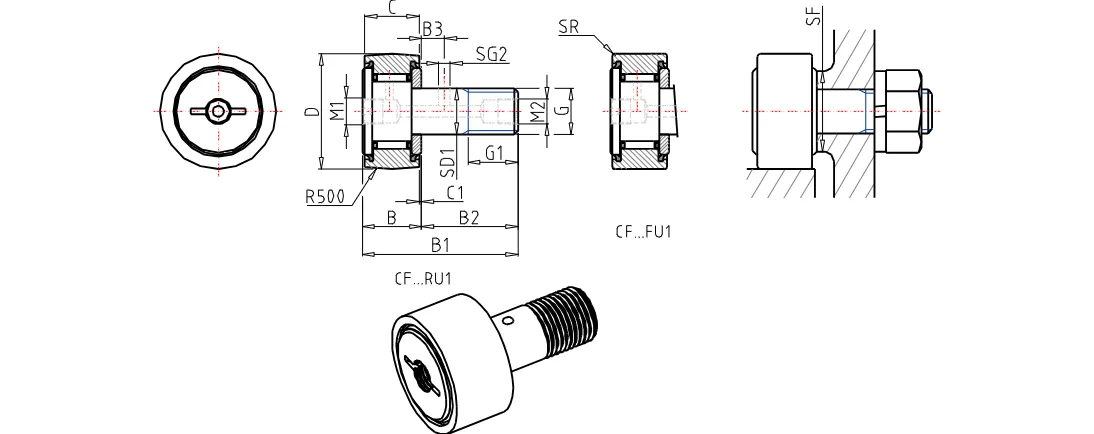

The CFFU18 Has Specified Dimensions and Thread Details
What dimensions are provided for the CFFU18?
The supplied data identifies the following dimensional and thread details. Installation should be based on the complete product specification for the selected unit.
- Stud Diameter: 8 mm
- Outer Diameter: 19 mm
- Width: 11 mm
- Thread: M8x1.25
- Thread Length: 10 mm
- Maximum Width: 12.2 mm
- Maximum Total Length: 32.2 mm
- Length: 20.0 mm
- Minimum Installation Dimension: 13 mm
- Maximum Tightening Torque: 6.5 Nm
- Mass: 28.5 g
The CFFU18 Includes Load Rating and Construction Information
What construction and load data are supplied for the CFFU18?
The cam follower is described as high carbon steel, shielded, and fitted with a screw driver slot. The supplied load ratings are listed below for reference.
- Basic Dynamic Load Rating: 4250 N
- Basic Static Load Rating: 4740 N
- Maximum Static Allowable Load: 4620 N
- Material: High Carbon Steel
- Outer Ring Form: Cylindrical
