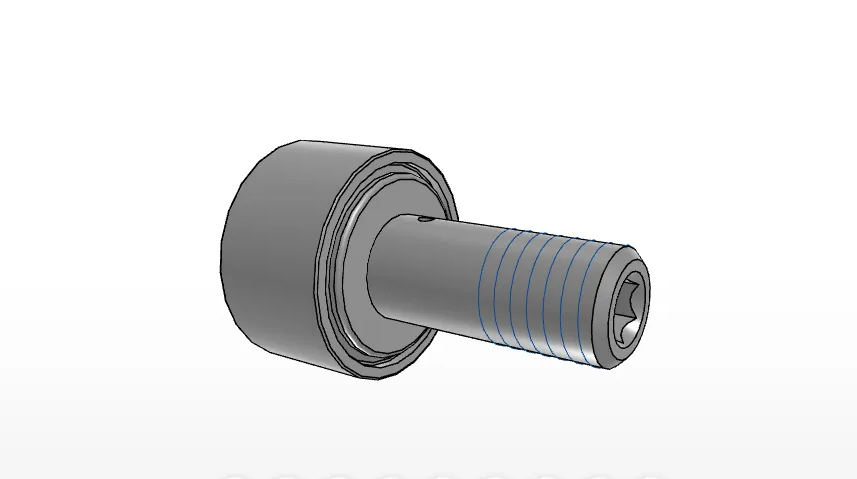

IKO CFKR22UU

Double Hex Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Sealed, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

Detailed data of

CFKR22UU

Order number CFKR22UU
Stud Diameter 10 mm
Outer Diameter 22 mm
Width 12 mm
Stud Diameter 10 mm
Thread M10X1.0
Length 12.0 mm
Maximum width 13.2 mm
Max.Total length 36.2 mm
Length 23.0 mm
Dimension 0 mm
Dimension 0.6 mm
Diameter 3.5 mm
Diameter 0 mm
Dimension 5.0 mm
rs min 0.3 mm
Min.Dimension related to the installation 16.0 mm
Maximum tightening torque 13.00 Nm
Basic dynamic load rating 5430 N
Basic static load rating 6890 N
Max.Static allowable load 6890 N
Mass 43.0 g
