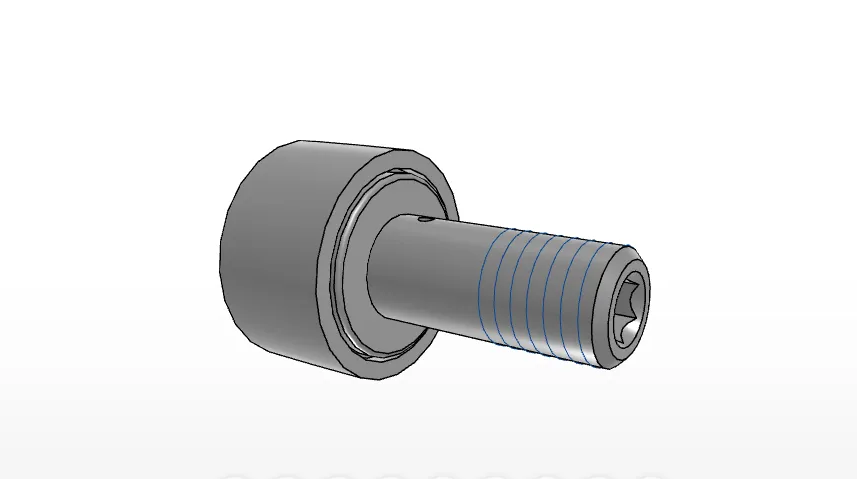

IKO CFKR22VR

Double Hex Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

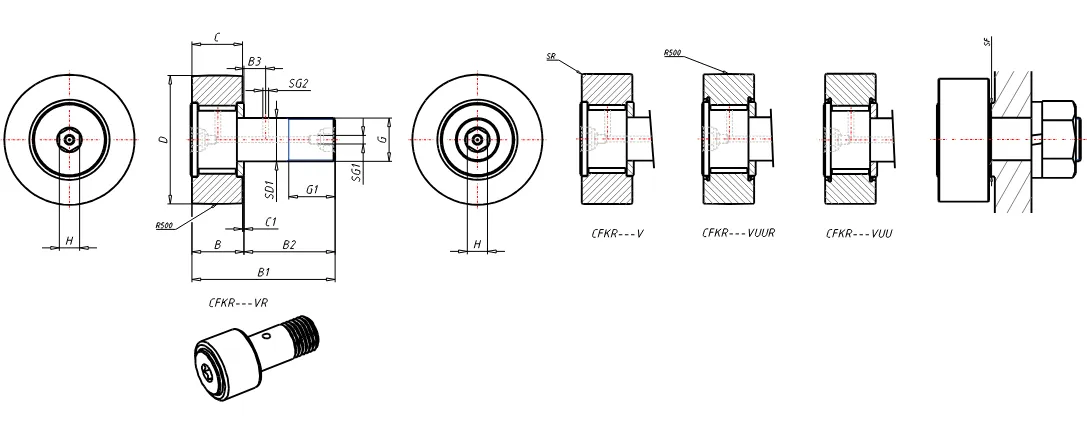

Detailed data of

CFKR22VR

Order number CFKR22VR
Stud Diameter 10 mm
Outer Diameter 22 mm
Width 12 mm
Stud Diameter 10 mm
Thread M10X1.0
Length 12 mm
Maximum width 13.2 mm
Max.Total length 36.2 mm
Length 23.0 mm
Dimension 0 mm
Dimension 0.6 mm
Diameter 3.5 mm
Diameter 0 mm
Dimension 5 mm
rs min 0.3 mm
Min.Dimension related to the installation 16 mm
Maximum tightening torque 13.0 Nm
Basic dynamic load rating 9570 N
Basic static load rating 14500 N
Max.Static allowable load 7920 N
Mass 44 g
