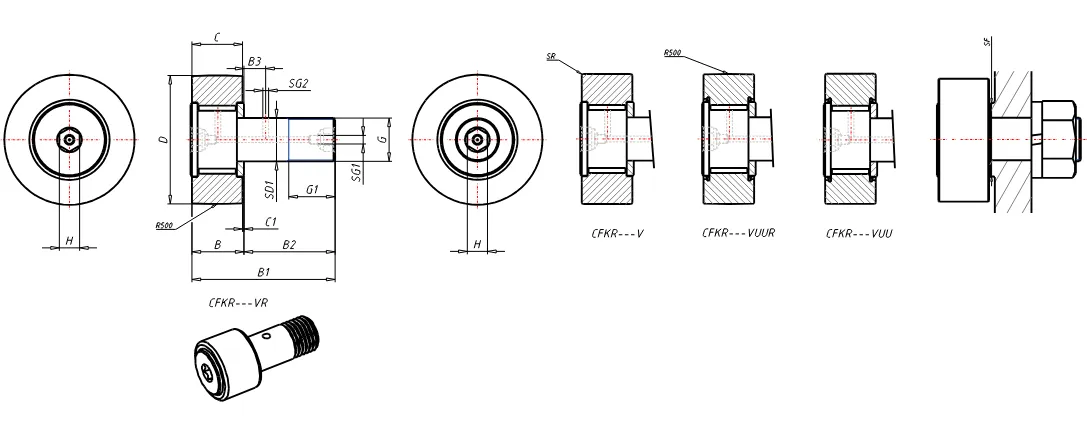

IKO CFKR26VR
Double Hex Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order number
CFKR26VR
Stud Diameter
10
mm
Outer Diameter
26
mm
Width
12
mm
Stud Diameter
10
mm
Thread
M10X1.0
Length
12
mm
Maximum width
13.2
mm
Max.Total length
36.2
mm
Length
23.0
mm
Dimension
0
mm
Dimension
0.6
mm
Diameter
3.5
mm
Diameter
0
mm
Dimension
5
mm
rs min
0.3
mm
Min.Dimension related to the installation
16
mm
Maximum tightening torque
13.0
Nm
Basic dynamic load rating
9570
N
Basic static load rating
14500
N
Max.Static allowable load
7920
N
Mass
59
g
