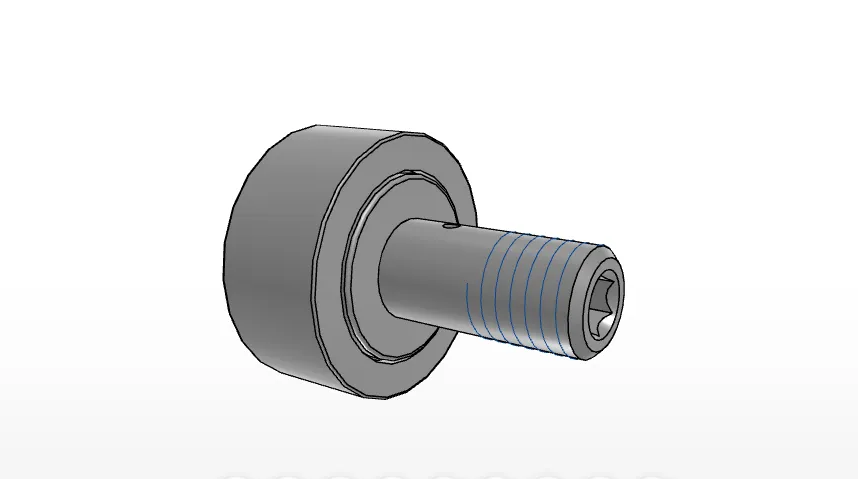

IKO CFKR32

Double Hex Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

Detailed data of

CFKR32

Order number CFKR32
Stud Diameter 12 mm
Outer Diameter 32 mm
Width 14 mm
Stud Diameter 12 mm
Thread M12x1.5
Length 13.0 mm
Maximum width 15.2 mm
Max.Total length 40.2 mm
Length 25.0 mm
Dimension 6 mm
Dimension 0.6 mm
Diameter 4 mm
Diameter 3 mm
Dimension 6.0 mm
rs min 0.6 mm
Min.Dimension related to the installation 21.0 mm
Maximum tightening torque 21.90 Nm
Basic dynamic load rating 7910 N
Basic static load rating 9790 N
Max.Static allowable load 9790 N
Mass 104.0 g
