IKO CFKR32VR

Double Hex Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

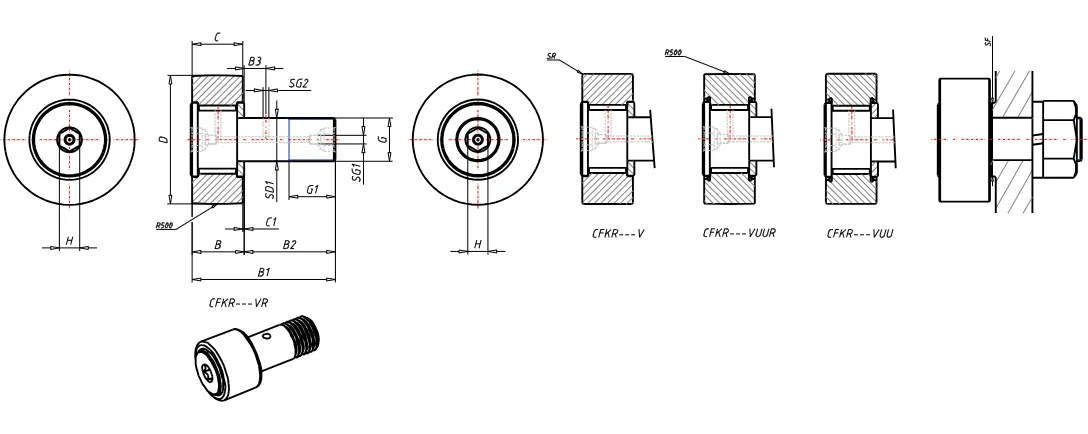

Detailed data of

CFKR32VR

Order number CFKR32VR
Stud Diameter 12 mm
Outer Diameter 32 mm
Width 14 mm
Stud Diameter 12 mm
Thread M12x1.5
Length 13 mm
Maximum width 15.2 mm
Max.Total length 40.2 mm
Length 25.0 mm
Dimension 6 mm
Dimension 0.6 mm
Diameter 4 mm
Diameter 3 mm
Dimension 6 mm
rs min 0.6 mm
Min.Dimension related to the installation 21 mm
Maximum tightening torque 21.9 Nm
Basic dynamic load rating 13500 N
Basic static load rating 19700 N
Max.Static allowable load 13200 N
Mass 106 g
