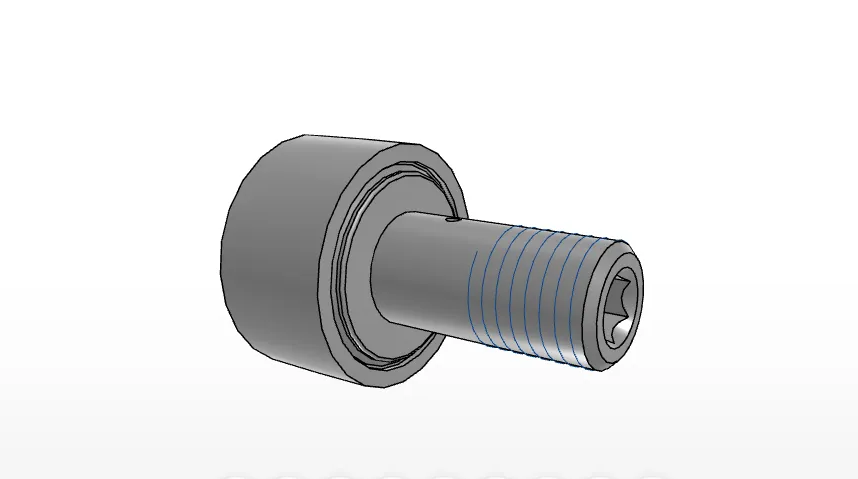

IKO CFKR35UUR
Double Hex Metric Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Sealed, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order number
CFKR35UUR
Stud Diameter
16
mm
Outer Diameter
35
mm
Width
18
mm
Stud Diameter
16
mm
Thread
M16x1.5
Length
17.0
mm
Maximum width
19.6
mm
Max.Total length
52.1
mm
Length
32.5
mm
Dimension
8
mm
Dimension
0.8
mm
Diameter
4
mm
Diameter
3
mm
Dimension
8.0
mm
rs min
-
mm
Min.Dimension related to the installation
26.0
mm
Maximum tightening torque
58.50
Nm
Basic dynamic load rating
12000
N
Basic static load rating
18300
N
Max.Static allowable load
18300
N
Mass
165.0
g
