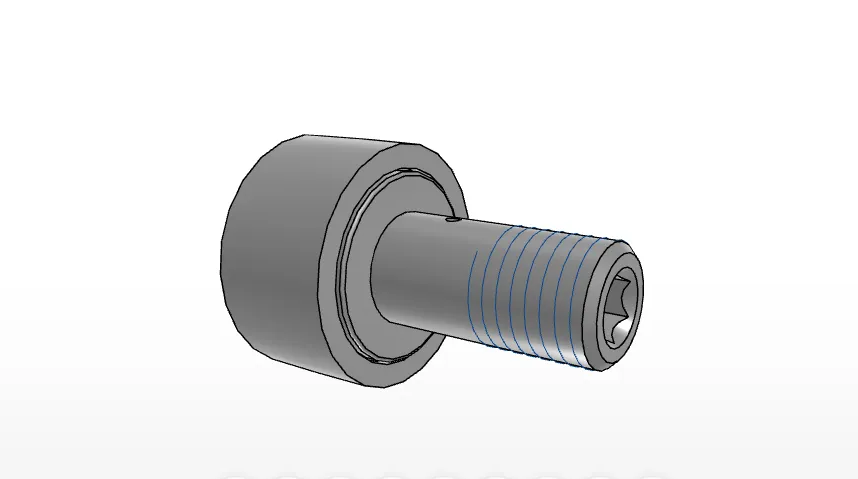

IKO CFKR35VR
Double Hex Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order number
CFKR35VR

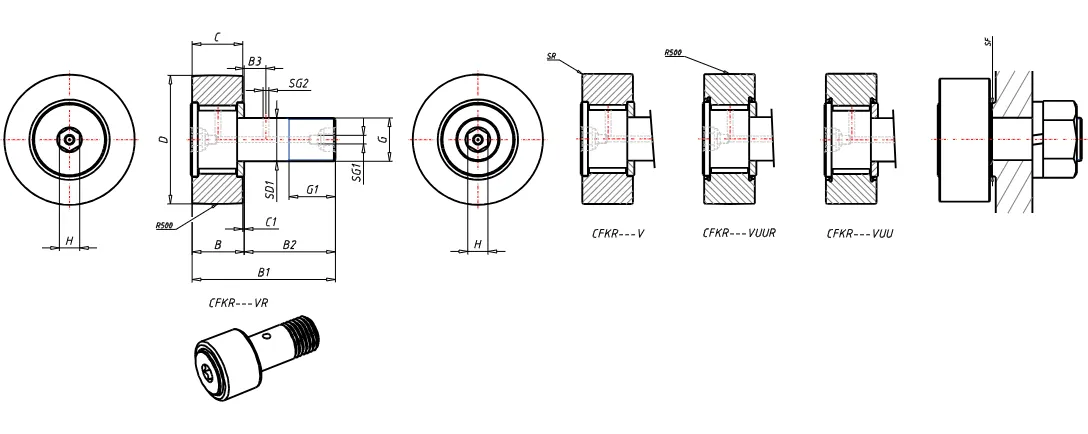

Stud Diameter
16
mm
Outer Diameter
35
mm
Width
18
mm
Stud Diameter
16
mm
Thread
M16x1.5
Length
17
mm
Maximum width
19.6
mm
Max.Total length
52.1
mm
Length
32.5
mm
Dimension
8
mm
Dimension
0.8
mm
Diameter
4
mm
Diameter
3
mm
Dimension
8
mm
rs min
0.6
mm
Min.Dimension related to the installation
26
mm
Maximum tightening torque
58.5
Nm
Basic dynamic load rating
20700
N
Basic static load rating
37600
N
Max.Static allowable load
23200
N
Mass
168
g
