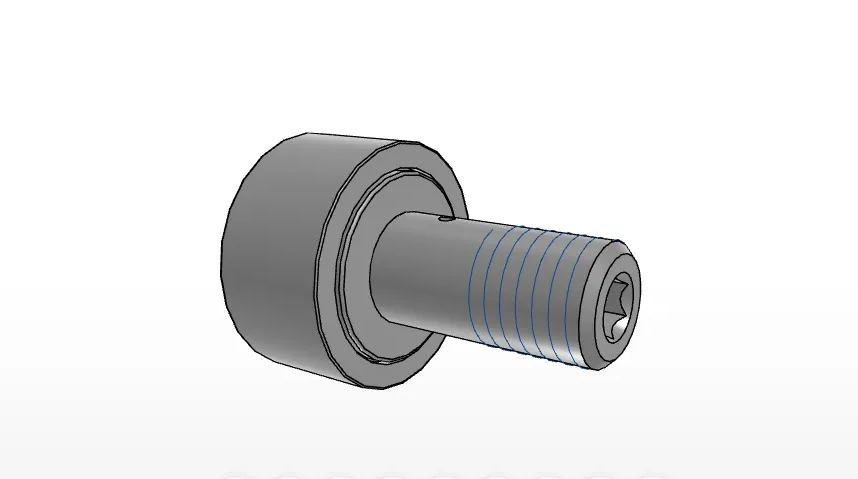

IKO CFKR40V

Double Hex Metric Cam Follower, Full Complement, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

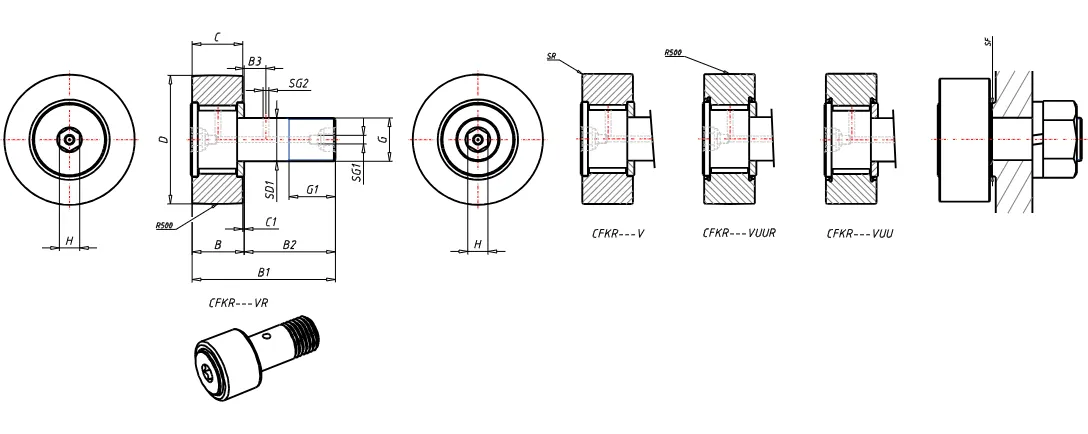

Detailed data of

CFKR40V

Order number CFKR40V
Stud Diameter 18 mm
Outer Diameter 40 mm
Width 20 mm
Stud Diameter 18 mm
Thread M18x1.5
Length 19 mm
Maximum width 21.6 mm
Max.Total length 58.1 mm
Length 36.5 mm
Dimension 8 mm
Dimension 0.8 mm
Diameter 6 mm
Diameter 3 mm
Dimension 8 mm
rs min 1.0 mm
Min.Dimension related to the installation 29 mm
Maximum tightening torque 86.2 Nm
Basic dynamic load rating 25300 N
Basic static load rating 51300 N
Max.Static allowable load 31100 N
Mass 253 g
