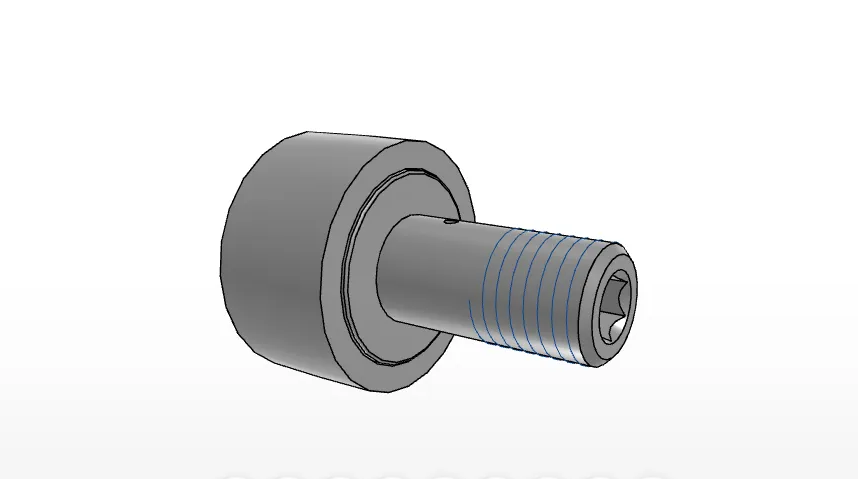

IKO CFKR47R
Double Hex Metric Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Shielded, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
Order number
CFKR47R
Stud Diameter
20
mm
Outer Diameter
47
mm
Width
24
mm
Stud Diameter
20
mm
Thread
M20x1.5
Length
21.0
mm
Maximum width
25.6
mm
Max.Total length
66.1
mm
Length
40.5
mm
Dimension
9
mm
Dimension
0.8
mm
Diameter
6
mm
Diameter
4
mm
Dimension
10.0
mm
rs min
-
mm
Min.Dimension related to the installation
34.0
mm
Maximum tightening torque
119.00
Nm
Basic dynamic load rating
20700
N
Basic static load rating
34600
N
Max.Static allowable load
34600
N
Mass
378.0
g
