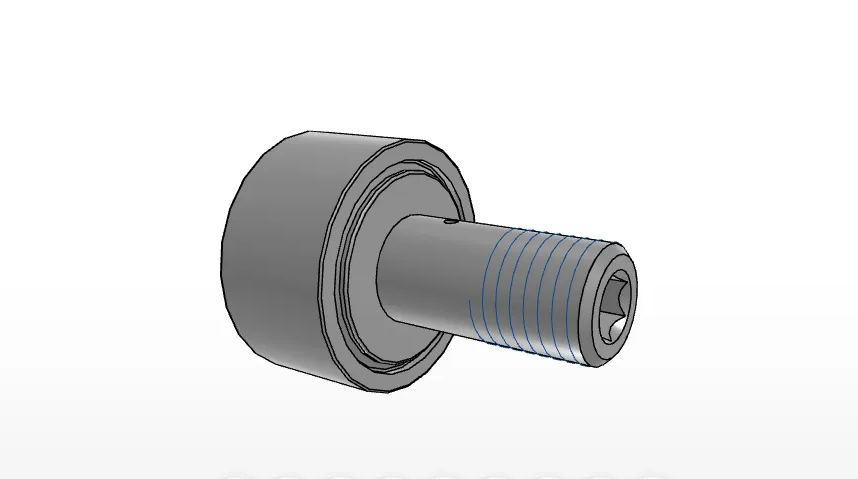

IKO CFKR47UU

Double Hex Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Sealed, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

Detailed data of

CFKR47UU

Order number CFKR47UU
Stud Diameter 20 mm
Outer Diameter 47 mm
Width 24 mm
Stud Diameter 20 mm
Thread M20x1.5
Length 21.0 mm
Maximum width 25.6 mm
Max.Total length 66.1 mm
Length 40.5 mm
Dimension 9 mm
Dimension 0.8 mm
Diameter 6 mm
Diameter 4 mm
Dimension 10.0 mm
rs min 1 mm
Min.Dimension related to the installation 34.0 mm
Maximum tightening torque 119.00 Nm
Basic dynamic load rating 20700 N
Basic static load rating 34600 N
Max.Static allowable load 34600 N
Mass 378.0 g
